Engine Block Heater

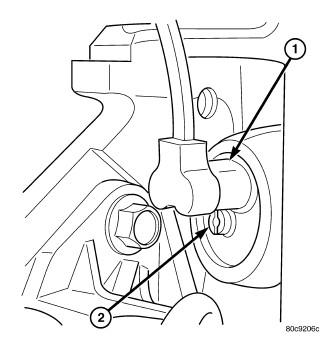

Fig 1: Engine Block Heater

Courtesy of CHRYSLER LLC

1 - BLOCK HEATER

2 - SCREW

Thoroughly clean core hole and heater seat.
Insert block heater (1) assembly with element loop positioned upward .
With heater seated, tighten center screw (2) securely to assure a positive seal.
Connect power cord to block heater.
Lower vehicle.
Fill the cooling system. See Cooling - Standard Procedure
