2.0L/2.4L Engine

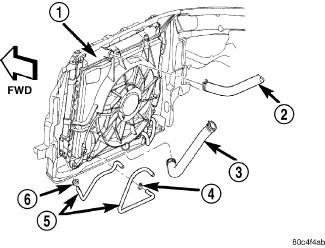

Fig 1: Radiator Hose Connections

Courtesy of CHRYSLER LLC

1 - RADIATOR

2 - RADIATOR UPPER HOSE

3 - RADIATOR LOWER HOSE

4 - CLAMP

5 - TRANSMISSION OIL COOLER HOSES

6 - CLAMP

WARNING: Do not open the radiator draincock with the system hot and under pressure because serious burns from coolant can occur.

NOTE: It is not necessary to discharge the air conditioning system to remove the radiator.

Non-Turbo Vehicles with Automatic Transmission: Remove two fasteners attaching transmission oil cooler to radiator.

Fig 2: Air Seals

Courtesy of CHRYSLER LLC

1 - A/C CONDENSER

2 - SIDE AIR SEALS

3 - LOWER AIR SEAL

Non-Turbo Vehicles: Remove lower radiator air seal from side radiator air seals (2, 3). See Fig 2.

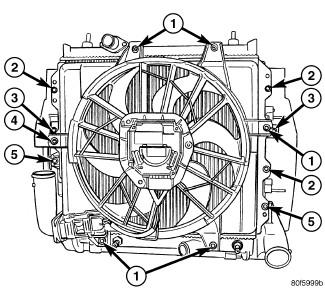

Fig 3: Cooling Module Fasteners - 2.4L Turbo

Courtesy of CHRYSLER LLC

1 - RADIATOR FAN FASTENERS

2 - CONDENSER FASTENERS

3 - TRANSMISSION OIL COOLER FASTENERS

4 - RADIATOR FAN/CONDENSER FASTENER

5 - CHARGE AIR COOLER FASTENERS

Remove fasteners (2) attaching AC condenser to radiator. See Fig 3. Reposition AC condenser.

Turbocharger Equipped Vehicles: Remove fasteners (5) attaching charge air cooler to radiator.

Fig 4: Cooling Module Assembly

Courtesy of CHRYSLER LLC

1 - UPPER RADIATOR CLOSURE PANEL

2 - COOLING MODULE

3 - RADIATOR FAN CONNECTOR

4 - LOWER RADIATOR CROSSMEMBER

Remove radiator assembly (2) by lifting it up from the engine compartment. See Fig 4. Care should be taken not to damage the cooling fins and tubes during removal.
Non-Turbo Vehicles: Remove the lower air seal from radiator.
