2.0L/2.4L Engine

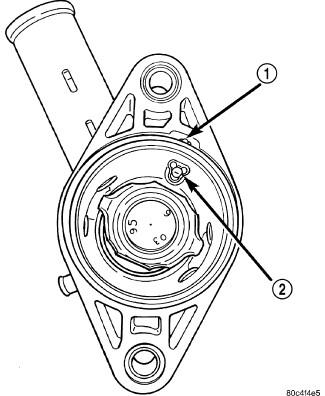

Fig 1: Thermostat Position

Courtesy of CHRYSLER LLC

1 - LOCATOR NOTCH

2 - AIR BLEED

Place the new thermostat assembly into the coolant outlet connector, aligning air bleed (2) with the location notch on outlet connector.

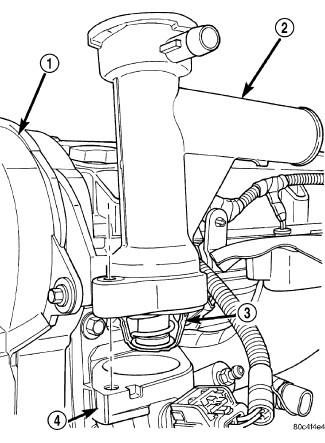

Fig 2: Thermostat and Coolant Outlet Connector

Courtesy of CHRYSLER LLC

1 - TIMING BELT COVER

2 - OUTLET CONNECTOR

3 - THERMOSTAT

4 - THERMOSTAT HOUSING

Install coolant outlet connector with thermostat in position onto thermostat housing (4). Tighten bolts to 12.5 N.m (110 in. lbs.).
Turbocharger equipped vehicles:
- Attach A/C suction line support bracket to A/C suction line.
- Install fastener securing A/C suction line support bracket to coolant outlet connector.
Connect upper radiator hose.
Connect the coolant recovery system hose.
Install upper intake manifold. Refer to Engine/Manifolds/MANIFOLD, Intake - Installation .
Fill cooling system. Refer to See SYSTEM FILLING - GAS ENGINE .
