DRIVE, Final: Description: Description

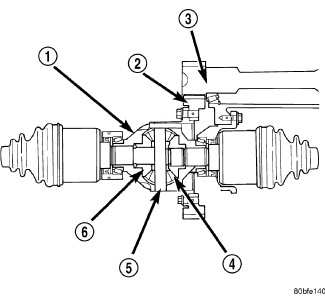

Fig 1: Differential Assembly

Courtesy of CHRYSLER LLC

1 - DIFFERENTIAL CASE

2 - RING GEAR

3 - TRANSFER SHAFT

4 - PINION GEAR

5 - PINION SHAFT

6 - SIDE GEAR

The 40/41TE differential is a conventional open design. It consists of a ring gear (2) and a differential case (1). The differential case consists of pinion and side gears (6), and a pinion shaft (5). The differential case is supported in the transaxle by tapered roller bearings.
