P0071-Ambient Air Temperature Sensor Performance: Notes

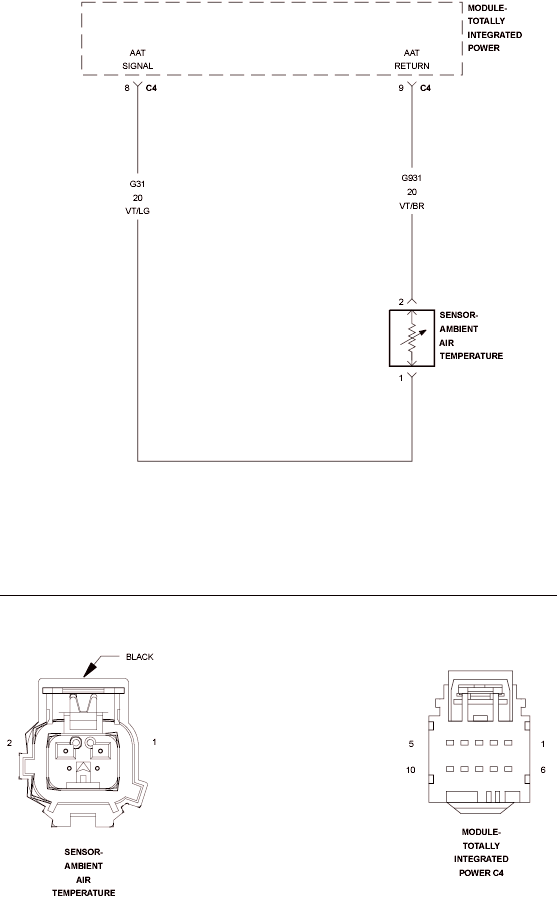

Fig 1: Ambient Air Temperature Sensor Circuit
GC0117152Courtesy of CHRYSLER LLC
