P0108-Manifold Absolute Pressure Sensor Circuit High
›
Notes
P0108-Manifold Absolute Pressure Sensor Circuit High: Notes

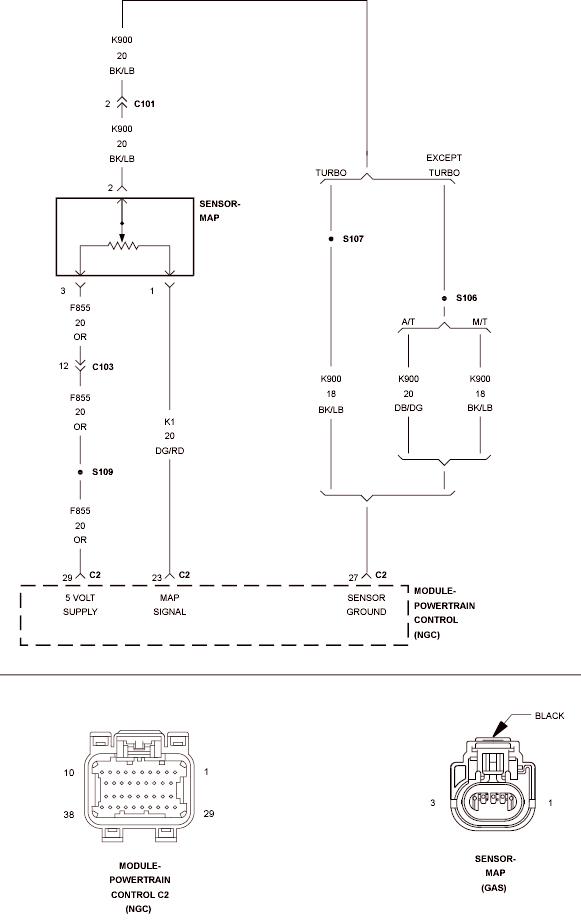

Fig 1: Manifold Absolute Pressure Sensor Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
