P0111-Intake Air Temperature Sensor Rationality: Notes

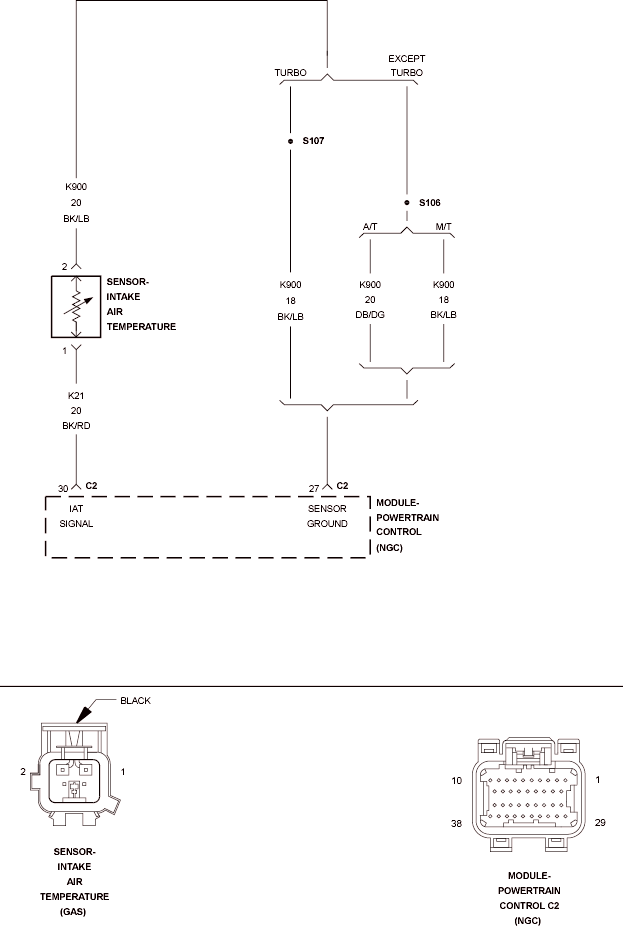

Fig 1: Intake Air Temperature Sensor Circuit
GC0117164Courtesy of CHRYSLER LLC
