P0116-Engine Coolant Temperature Sensor Circuit Performance: Notes

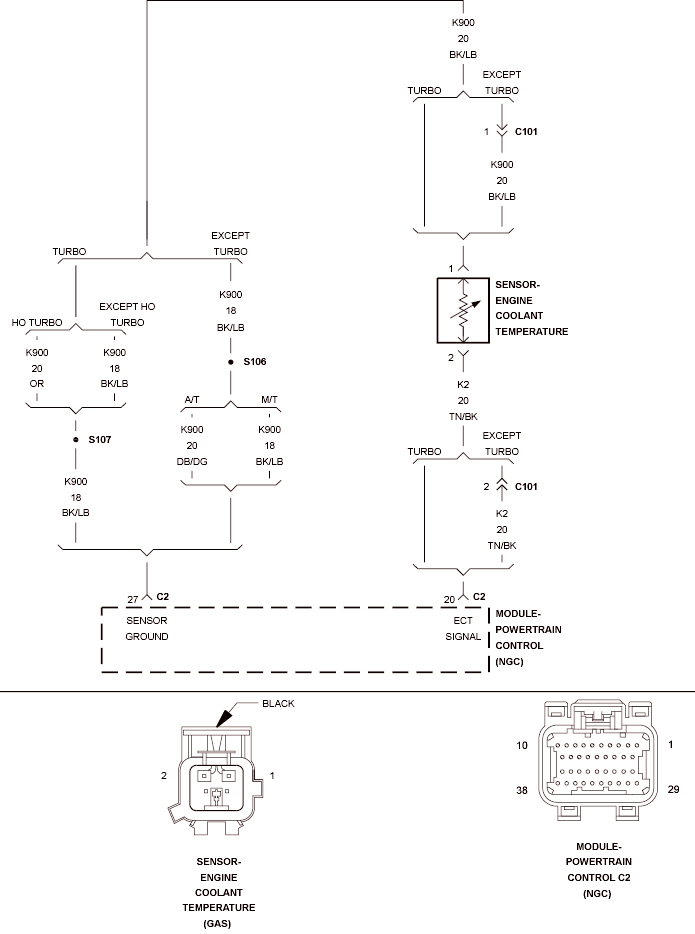

Fig 1: Engine Coolant Temperature Sensor Circuit
GC0117171Courtesy of CHRYSLER LLC
