P0131-O2 Sensor 1/1 Circuit Low: Notes

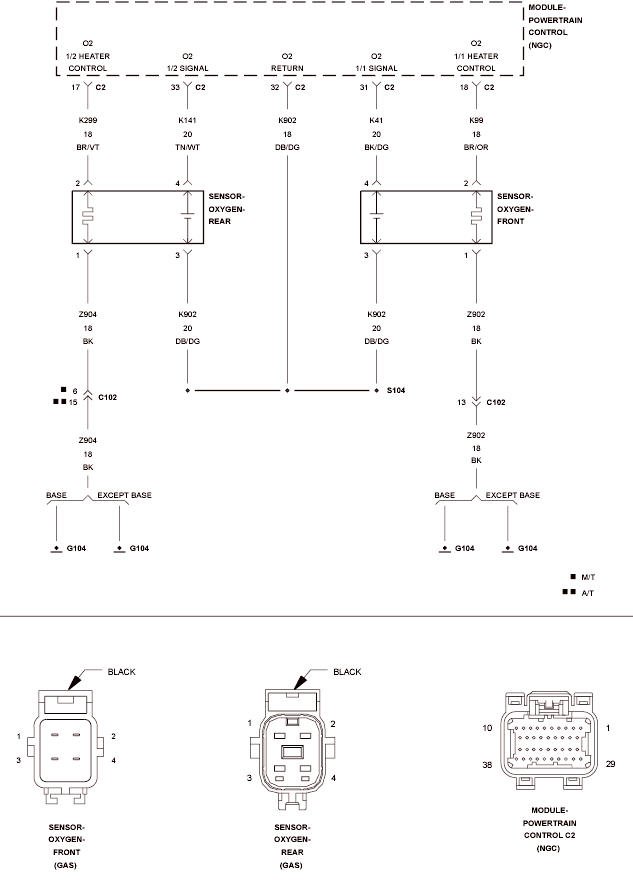

Fig 1: O2 Sensor 1/1 Circuit

GC0117122

Courtesy of CHRYSLER LLC
