P0572-Brake Switch #1 Circuit Low: Notes

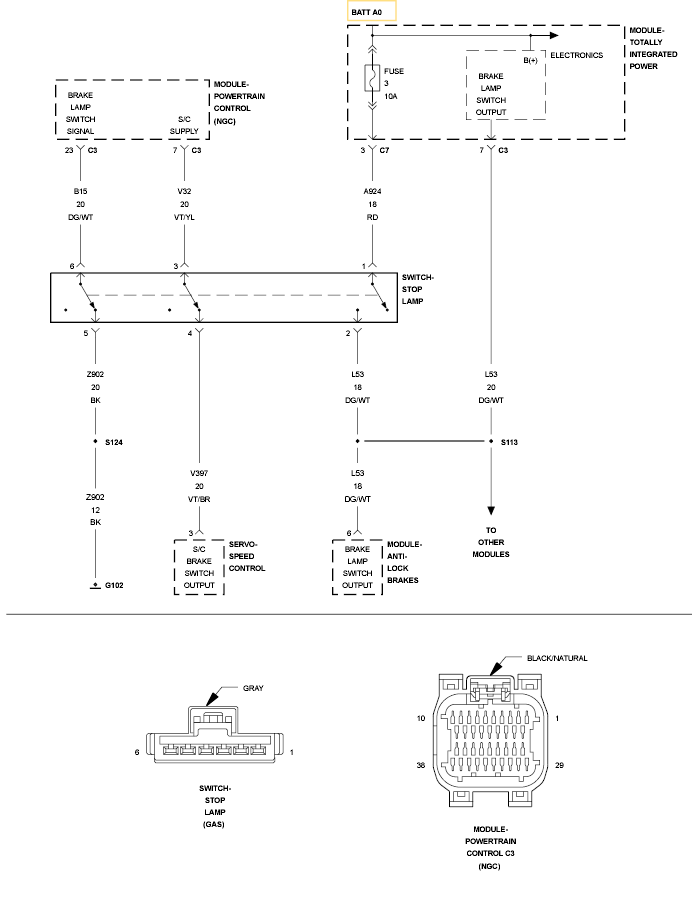

Fig 1: Brake Switch Circuit
GC0117297Courtesy of CHRYSLER LLC
