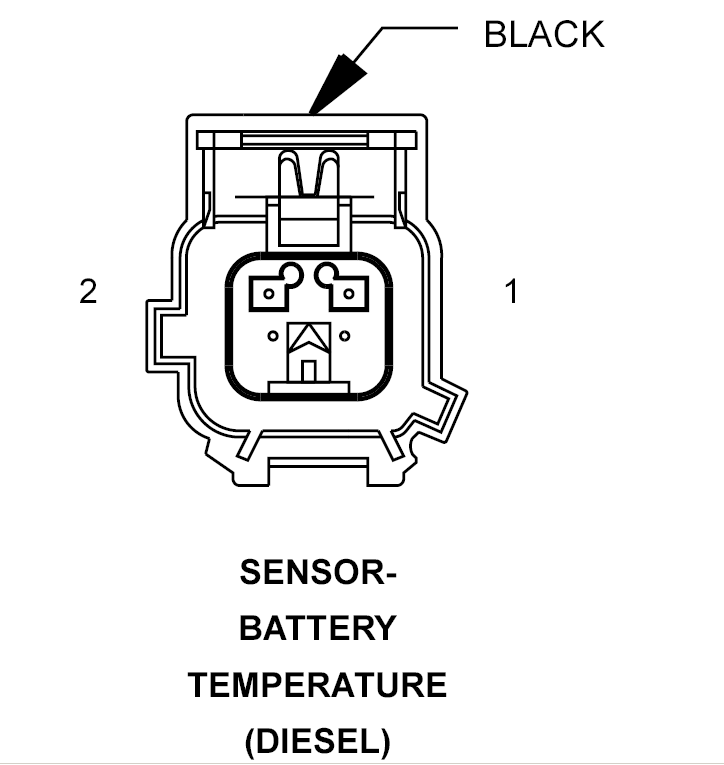

Battery Temperature Sensor (Diesel) Connector End View

SENSOR-BATTERY TEMPERATURE - BLACK 2-WAY (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K25 20DB/VT	BATTERY TEMP SIGNAL
2	K91 20DB/YL	BATTERY TEMP RETURN
