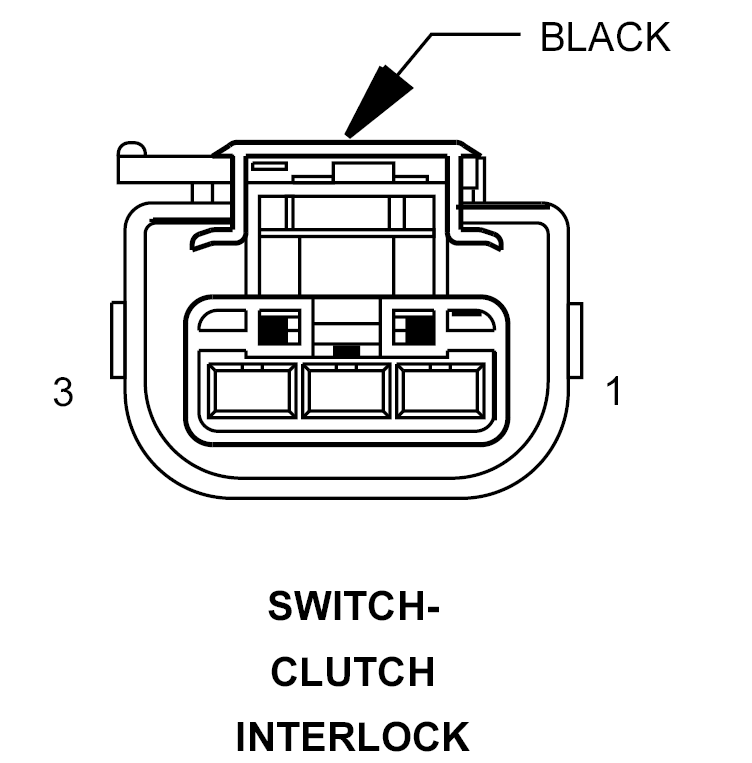

Clutch Interlock Switch Connector End View
SWITCH-CLUTCH INTERLOCK - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T26 20LG/BK |
CLUTCH UPSTOP SWITCH SIGNAL (1.6L) |
| 1 |
T26 20DG/OR |
CLUTCH UPSTOP SWITCH SIGNAL (DIESEL) |
| 2 |
Z906 20BK |
GROUND (1.6L/DIESEL) |
| 2 |
Z902 20BK |
GROUND (2.4L) |
| 3 |
T141 20YL/OR |
CLUTCH INTERLOCK SWITCH SIGNAL |
