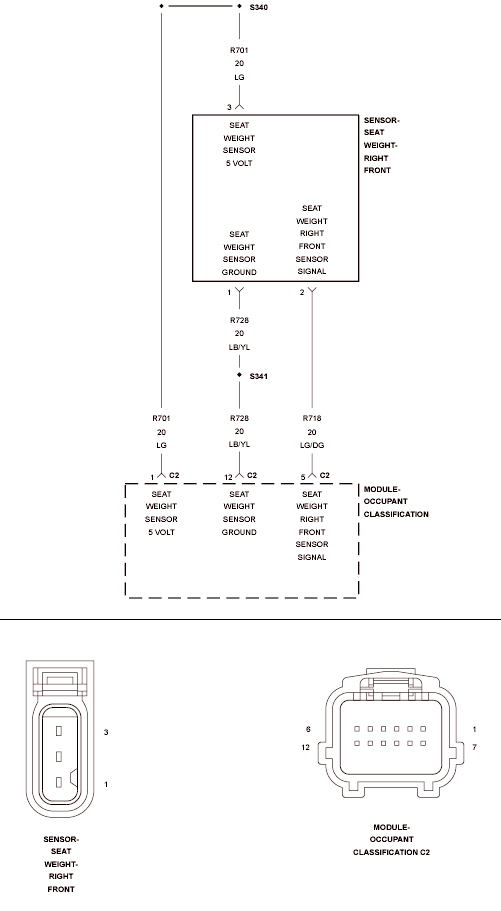

Home › Chrysler › 2009 › PT Cruiser Base, Standard › Repair and Diagnosis › Restraints › Restraints Control Systems › Occupant Classification Module (OCM) - Electrical Diagnostics › DTC Troubleshooting › B1B7D-Passenger Seat Weight Sensor 2 - Right Front Performance › Circuit Schematic
