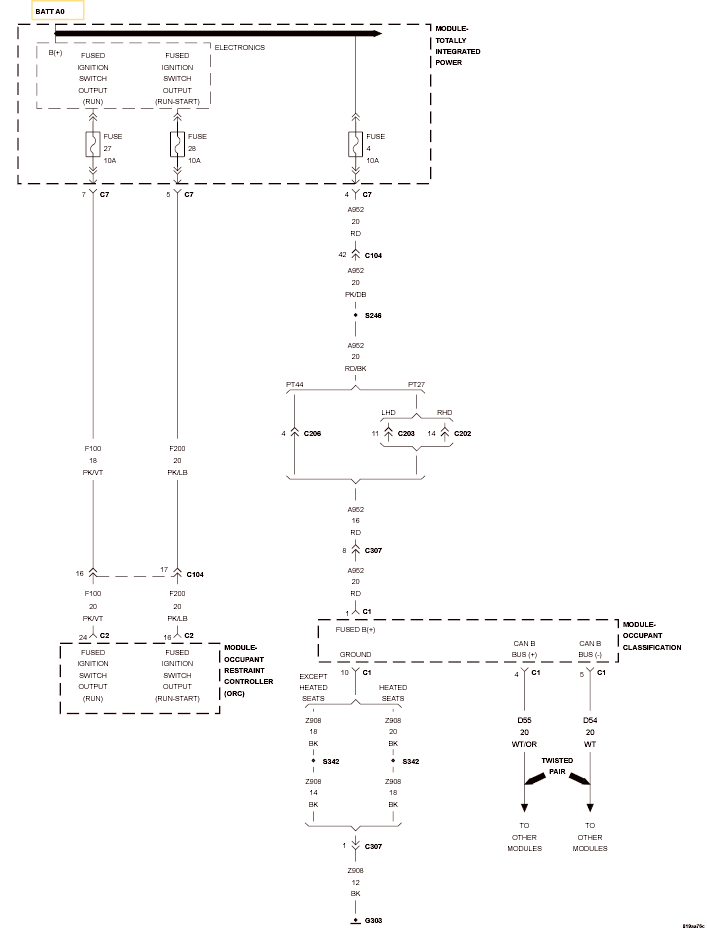

Home › Chrysler › 2009 › PT Cruiser Base, Standard › Repair and Diagnosis › Restraints › Seat Belts › Occupant Classification Module (OCM) - Electrical Diagnostics › DTC Troubleshooting › B212C-Ignition Run/Start Input Circuit Open › Circuit Schematic
