T350 Manual Transmission (Service Information): Assembly: Assembly: Notes

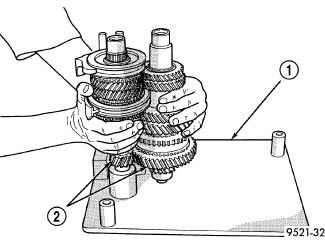

Fig 1: Bench Fixture

Courtesy of CHRYSLER LLC

The T350 transaxle internal components can be serviced only by separating the gear case from the bellhousing case.

The sealant used to seal the transaxle case halves is Mopar® Gasket Maker, Loctite® 518, or equivalent. The sealant used for the bearing end plate cover is Mopar® RTV.

1. Verify bench fixture shims are removed from bench fixture (1) .

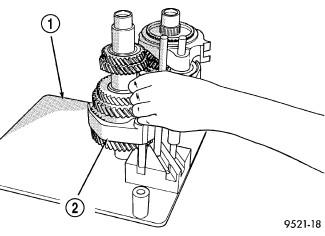

   Fig 2: 1-2 Shift Fork Removal

   Courtesy of CHRYSLER LLC

   1 - 6785 BENCH FIXTURE

   2 - 1-2 SHIFT FORK

2. Install output and input shafts into bench fixture 6785 (1) .
   Fig 3: Shift Blocker Installation

   Courtesy of CHRYSLER LLC

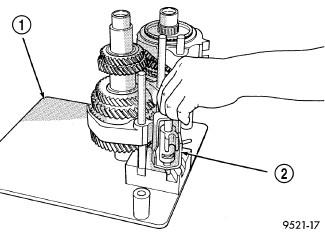

   1 - 6785 BENCH FIXTURE

   2 - SHIFT BLOCKER ASSEMBLY

3. Install shift blocker assembly into bench fixture (1) .
   Fig 4: Reverse Brake Blocking Ring Installation

   Courtesy of CHRYSLER LLC

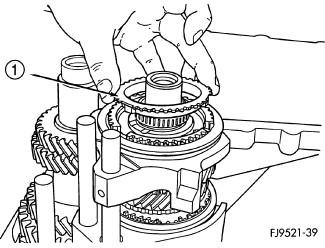

   1 - REVERSE BRAKE BLOCKING RING

4. Install reverse brake blocking ring (1) .
   Fig 5: Reverse Brake Friction Cone Installation

   Courtesy of CHRYSLER LLC

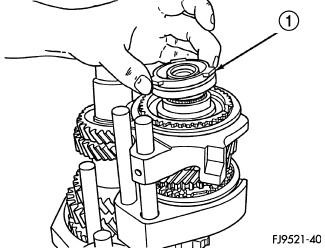

   1 - REVERSE BRAKE FRICTION CONE

5. Install reverse brake friction cone (1) .

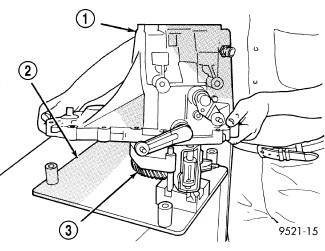

   Fig 6: Gear Case Half

   Courtesy of CHRYSLER LLC

   1 - TRANSAXLE CASE

   2 - BENCH FIXTURE

   3 - GEARTRAIN

6. Install gear-case half (1) over bench fixture (2). Line up shift finger over 3-4 lug.

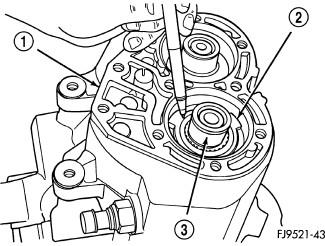

   Fig 7: Friction Cone Lugs

   Courtesy of CHRYSLER LLC

   1 - CASE

   2 - FRICTION CONE LUGS

   3 - INPUT SHAFT

7. Line up reverse brake friction cone lugs (2) to the slots in the gear case (1). Verify reverse brake shim is in position.
   Fig 8: Installing Input and Output Bearings

   Courtesy of CHRYSLER LLC

   1 - INPUT AND OUTPUT BEARINGS

   2 - SEAL INSTALLER 4992-1

8. Position input and output bearings (1) on the shafts. Using Seal Installer C-4992-1 (2), press on input and output shaft bearings (1) until they bottom into the case and against the shafts.
   Fig 9: Snap Rings Retaining Bearings

   Courtesy of CHRYSLER LLC

   1 - SNAP RING PLIERS

   2 - SNAP RINGS

9. Install shaft snap rings (2) at input and output bearings.

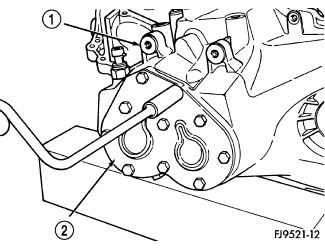

   Fig 10: Transaxle End Cover

   Courtesy of CHRYSLER LLC

   1 - TRANSAXLE CASE

   2 - END COVER

10. Apply Mopar® RTV sealant to end-cover (2) outer edge and around bolt holes. Install end-cover onto gear case. Tighten end cover bolts to 29 N.m (21 ft. lbs.) torque.
    Fig 11: Selector Shaft

    Courtesy of CHRYSLER LLC

    1 - SHIFT ASSEMBLY

    2 - SELECTOR SHAFT

11. Remove gear case from bench fixture.
12. Install gear case in a holding fixture with end cover facing down.
13. Turn selector shaft (2) into slot on blocker assembly.
    Fig 12: Reverse Idler Gear and Spacer

    Courtesy of CHRYSLER LLC

    1 - SPACER

    2 - REVERSE IDLER GEAR

14. Push selector shaft spacer clip onto selector shaft. Install shift levers.
15. Install reverse idler gear (2) and spacer (1).
    Fig 13: Reverse Idler Shaft Installation

    Courtesy of CHRYSLER LLC

    1 - REVERSE IDLER SHAFT

    2 - SPACER

16. Install reverse idler shaft (1) .
    Fig 14: Reverse Idler Shaft Bolt

    Courtesy of CHRYSLER LLC

    1 - CASE

    2 - REVERSE IDLER SHAFT

    3 - REVERSE IDLER SHAFT BOLT

17. Install bolt into shaft (2) and tighten to 29 N.m (19 ft. lbs.) torque.
    Fig 15: Reverse Fork Bracket

    Courtesy of CHRYSLER LLC

    1 - REVERSE FORK BRACKET

    2 - REVERSE CAM BLOCK OUT

    3 - SHIFT BLOCKER ASSEMBLY

18. Install reverse fork bracket (1) .
    Fig 16: Reverse Fork Screws

    Courtesy of CHRYSLER LLC

    1 - SCREWS (2)

    2 - REVERSE FORK BRACKET

19. Tighten reverse lockout (2) screws to 11 N.m (96 in. lbs.) torque.
    Fig 17: Differential Removal/Installation

    Courtesy of CHRYSLER LLC

    1 - INPUT SHAFT

    2 - OUTPUT SHAFT

    3 - DIFFERENTIAL ASSEMBLY

    4 - GEARTRAIN HOUSING

20. Install differential (3) into gear case (4) .
