B10EC-Blower Motor Control Circuit OVERCURRENT: Notes

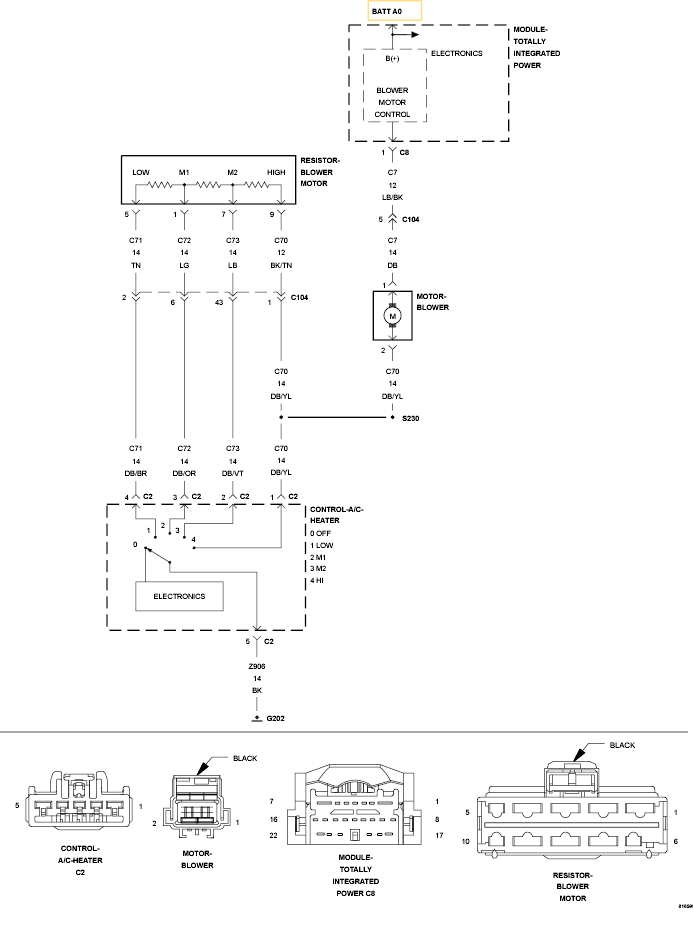

Fig 1: Blower Motor Control Circuit
GC0117437Courtesy of CHRYSLER LLC
