B212F-Ignition Run/Acc Control Circuit Low: Notes

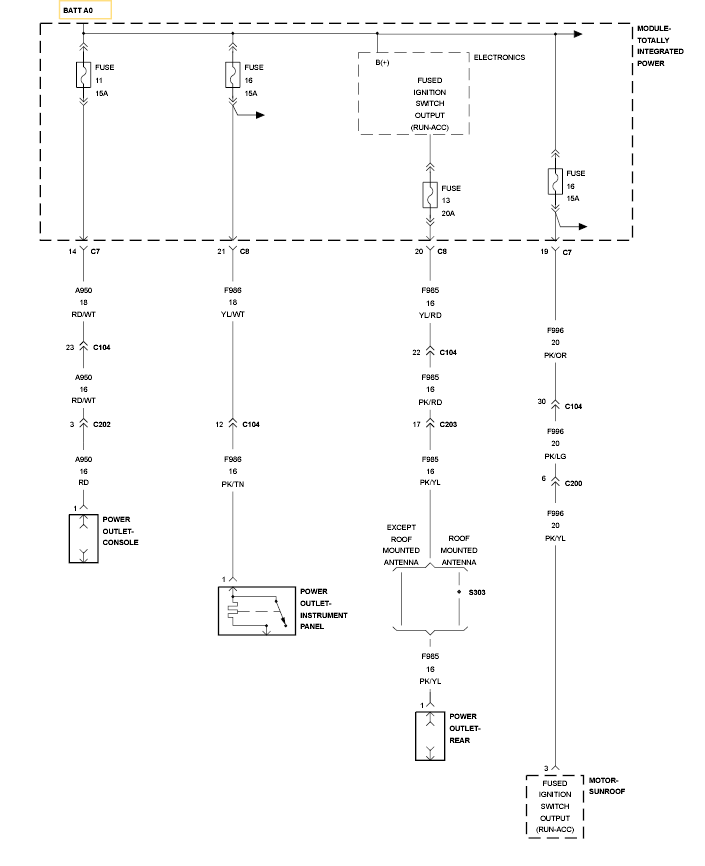

Fig 1: Ignition RUN/ACC Control Circuit
GC0117461Courtesy of CHRYSLER LLC
