B2338-Horn Control Circuit Open: Notes

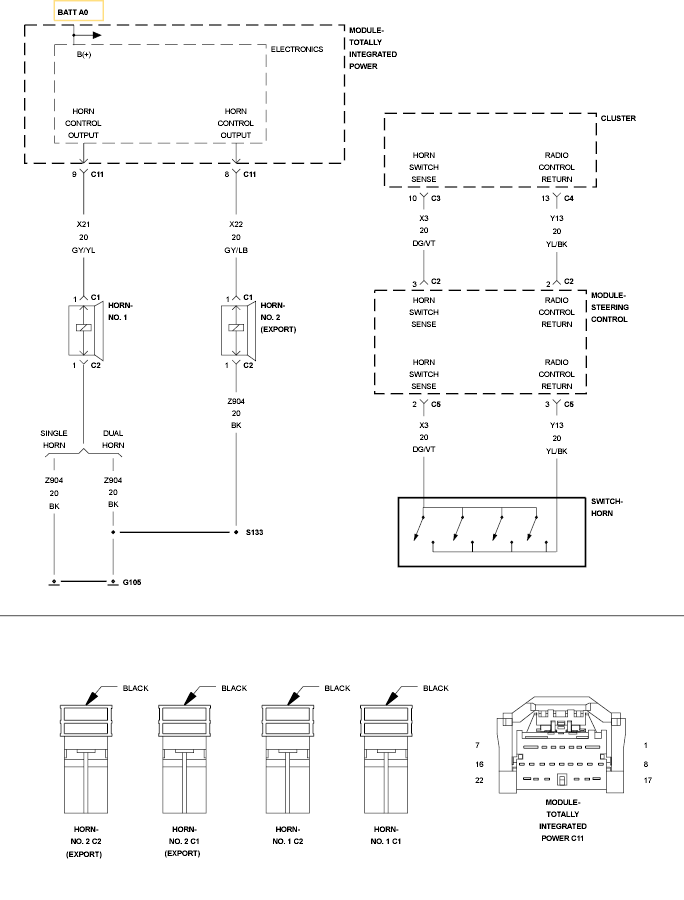

Fig 1: Horn Control Circuit
GC0117484Courtesy of CHRYSLER LLC
