P0517-Battery Temperature Sensor Circuit High: Notes

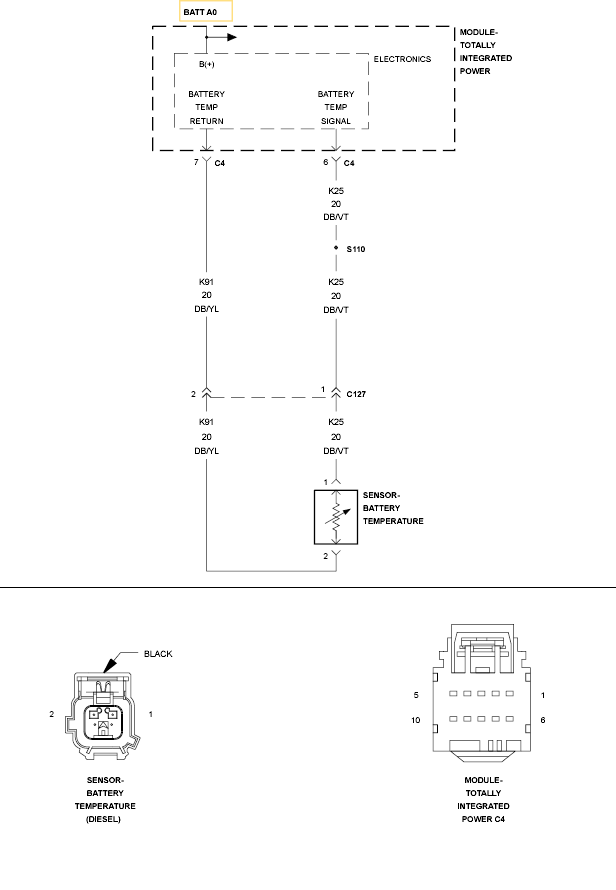

Fig 1: Battery Temperature Sensor Circuit
GC0117492Courtesy of CHRYSLER LLC
