Home › Chrysler › 2009 › PT Cruiser Limited › Repair and Diagnosis › Engine Performance › Ignition System › (Totally Integrated Power Module (TIPM) - Electrical Diagnostics) › DTC Troubleshooting › P1279-Starter Control Circuit 2 Open › Notes

P1279-Starter Control Circuit 2 Open: Notes

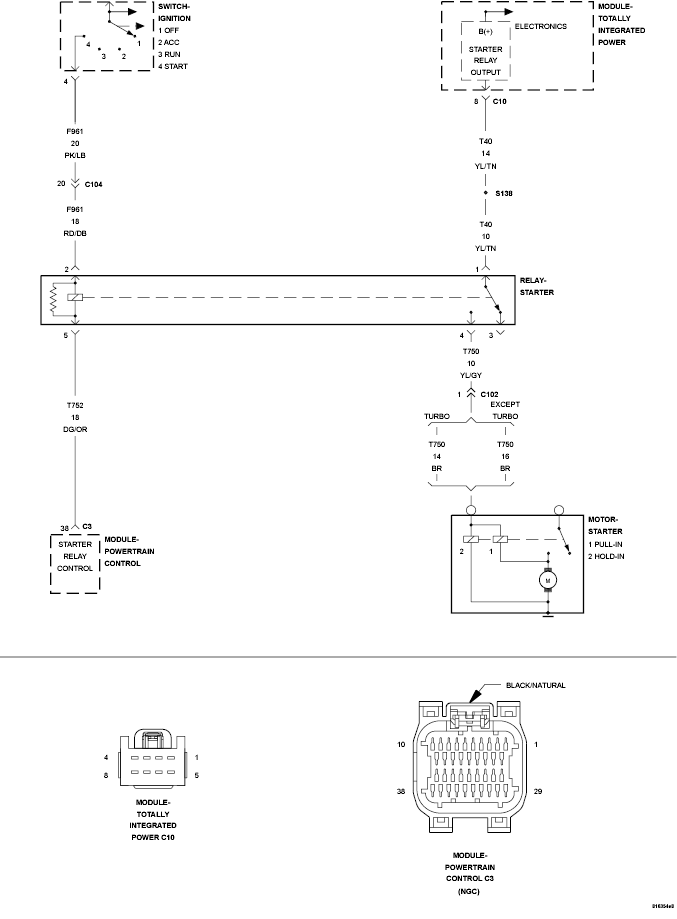

Fig 1: Starting System Circuit
GC0117503Courtesy of CHRYSLER LLC
