Starter Harness
WARNING:
To protect the hands from battery acid, a suitable pair of heavy duty rubber gloves should be worn when removing or servicing a battery. Safety glasses also should be worn.
WARNING:
Remove metallic jewelry to avoid injury by accidental arcing of battery current.
CAUTION:

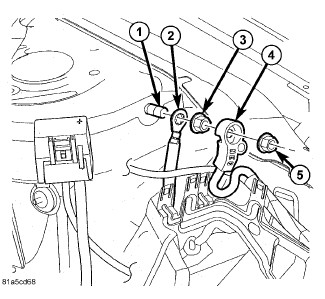

The negative battery cable remote terminal (2) must be disconnected and isolated from the remote battery post (1) prior to service of the vehicle electrical systems. The negative battery cable remote terminal can be isolated by using the supplied isolation hole (3) in the terminal casing.
- Remove and isolate the battery harness negative cable (4) on something other than the remote negative battery post (1).
- Position the starter harness into the vehicle.
- One at a time, install the starter harness retaining pushpins, fasteners and routing clips until the harness is installed exactly where it was in the vehicle.
- Position the starter harness negative cable (2) onto the remote negative battery post (1). Install the retaining nut (3) and tighten to 16.5 N.m (145 in. lbs.)
- Raise vehicle on hoist. Refer to Vehicle Quick Reference/Hoisting - Standard Procedure .

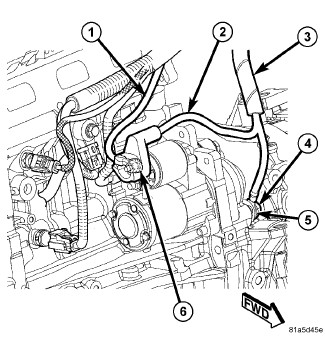

- Position the starter harness positive cable (2) onto the starter positive battery post. Install the retaining nut (6) and tighten to 13 N.m (115 in. lbs.)
- Position the starter harness negative cable (5) onto the engine block. Install the retaining bolt (4) and tighten to 16.5 N.m (145 in. lbs.)
- Lower the vehicle.
- Position the negative battery harness cable remote terminal (4) onto the remote battery post (1). Install the nut (5) and tighten to 16.5 N.m (145 in. lbs.)

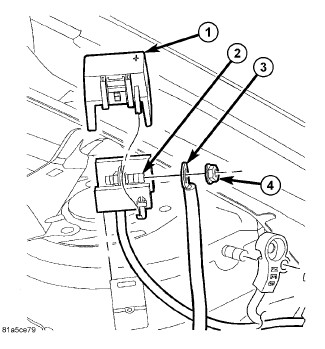

Remove the cover (1) from the remote positive battery terminal (2). Position the starter harness positive cable (3) onto the remote positive battery post. Install the retaining nut (4) and tighten to 16.5 N.m (145 in. lbs.) Install the cover (1) onto the remote positive battery terminal (2).
