Home › Chrysler › 2009 › Sebring Base, 2D Convertible, ED3 › Repair and Diagnosis › Engine Performance › System › DTCS P0353 To P0503 - GPEC › P0418-Secondary Air Injection System Control Circuit › Notes

P0418-Secondary Air Injection System Control Circuit: Notes

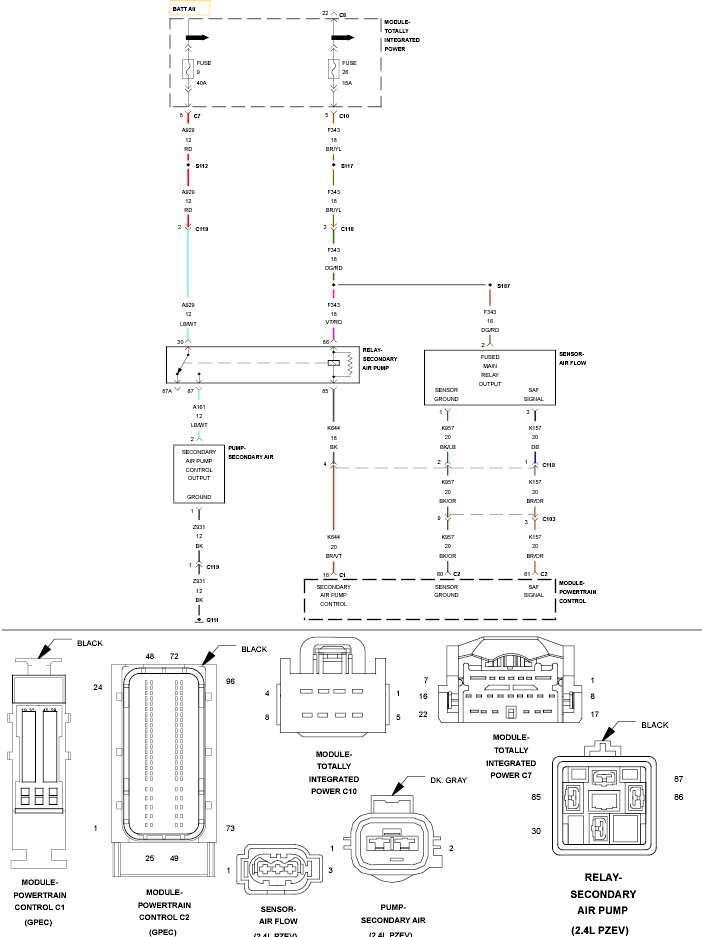

Fig 1: Secondary Air Injection System Control Circuit
GC0123830Courtesy of CHRYSLER LLC
