P0480-Cooling Fan 1 Control Circuit: Notes

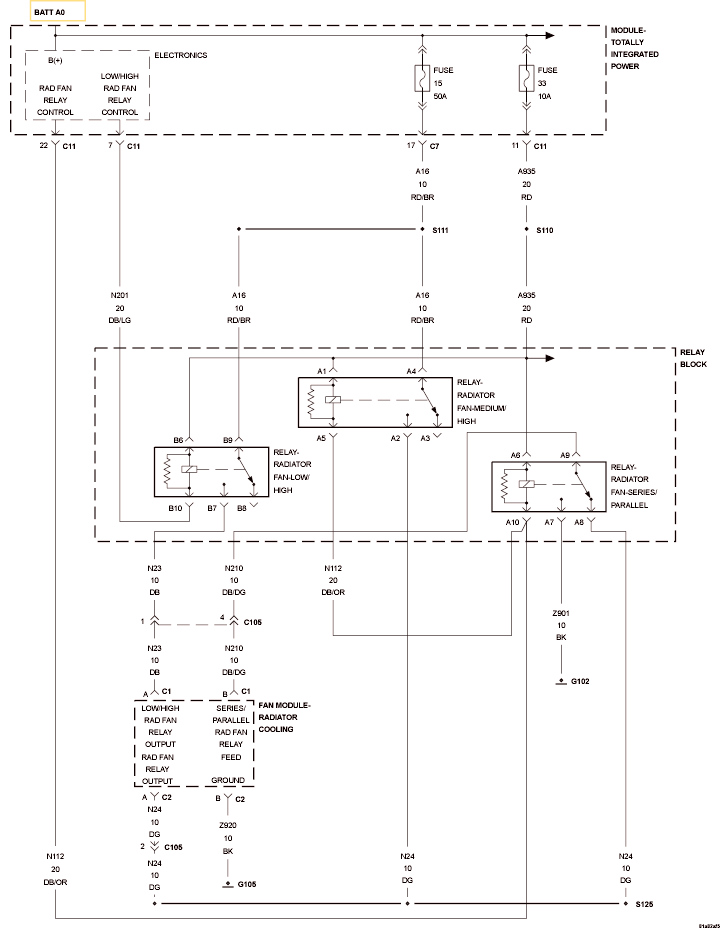

Fig 1: Cooling Fan Circuit
GC0123843Courtesy of CHRYSLER LLC
