P1794-Speed Sensor Ground Error: Notes

WARNING: This page is about a different variant/trim than selected.

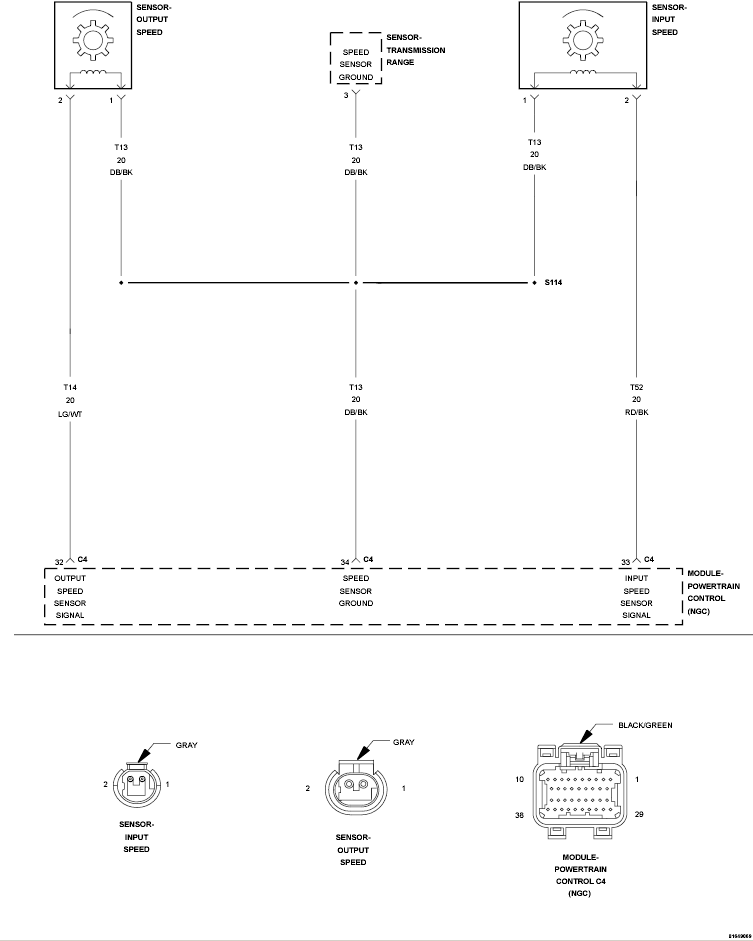

Fig 1: Checking Input Speed Sensor Circuit
GC0117362Courtesy of CHRYSLER LLC
