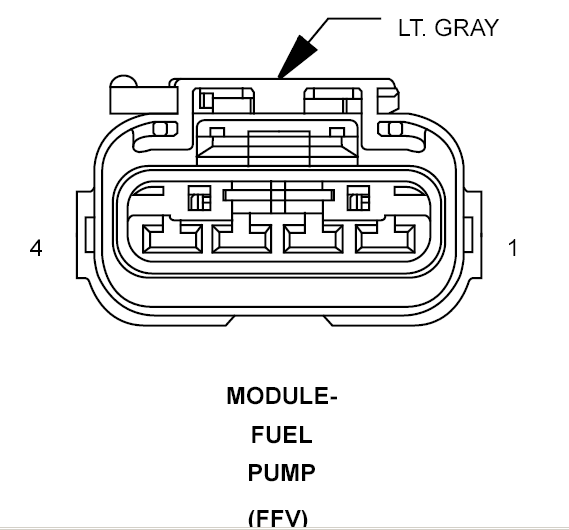

Fuel Pump Module (Flexible Fuel Vehicle) Connector End View
MODULE-FUEL PUMP - LT. GRAY 4 WAY (FFV)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z916 16BK |
GROUND |
| 2 |
Z916 16BK |
GROUND |
| 3 |
N4 20DB/WT |
FUEL LEVEL SIGNAL 1 |
| 4 |
N1 16DB/OR |
FUEL PUMP CONTROL OUTPUT |
