B1B70-Up-Front Left Satellite Acceleration Sensor Internal: Notes

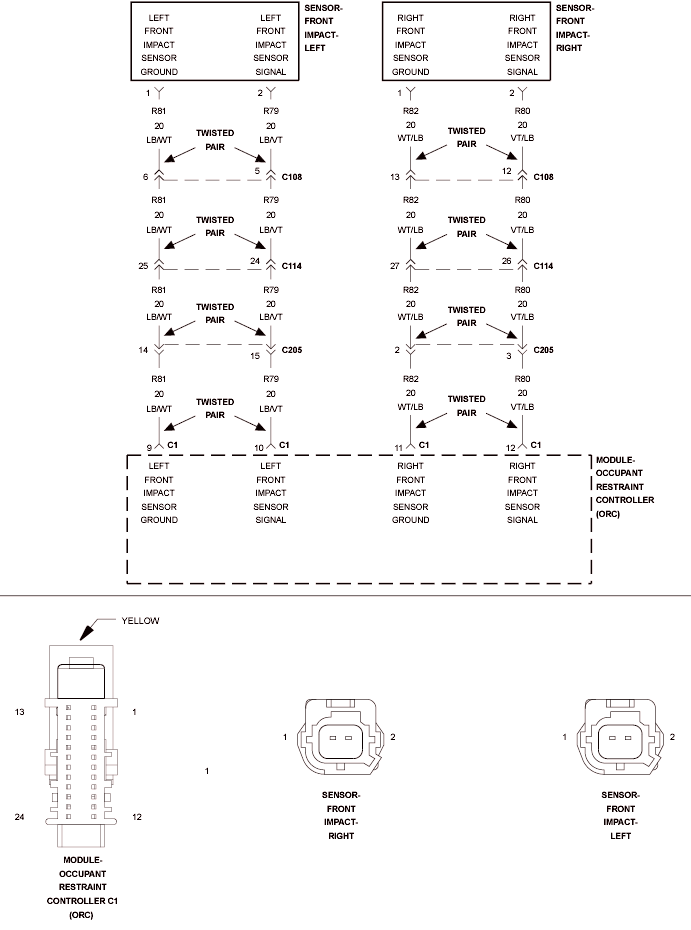

Fig 1: Impact Sensor Circuit
GC0123469Courtesy of CHRYSLER LLC
