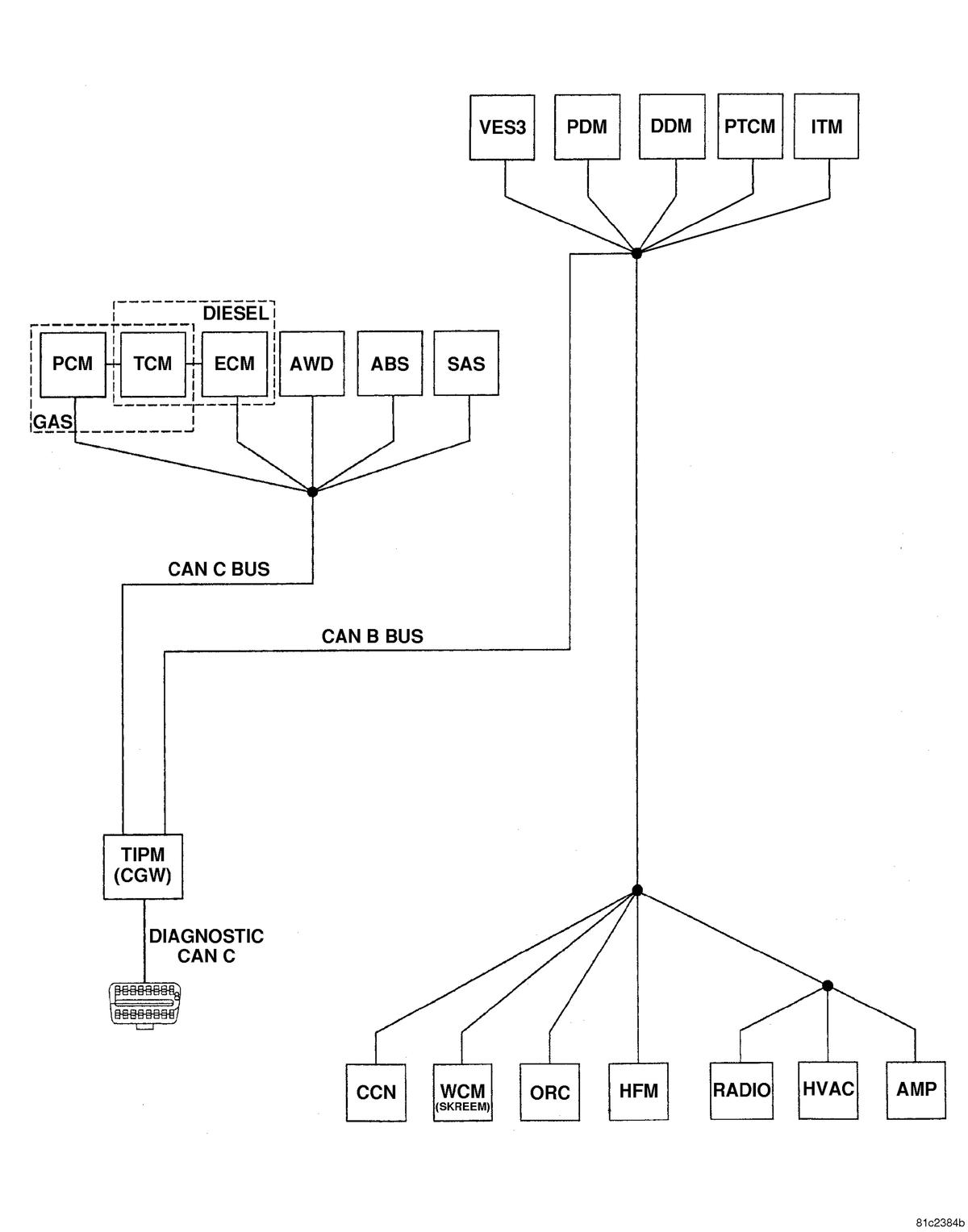

Home › Chrysler › 2009 › Sebring Base, 2D Convertible, EDG › Repair and Diagnosis › Body & Frame › Windows › Driver Door Module (DDM) - Electrical Diagnostics › DTC Troubleshooting › U0169-Lost Communication With Sunroof Control Module › Circuit Schematic
