CYLINDER, Ignition Lock: Removal: Removal

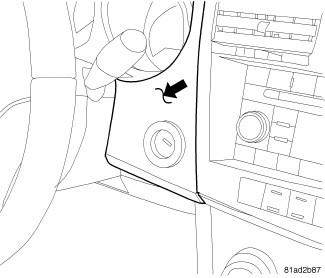

Fig 1: Switch Cover

Courtesy of CHRYSLER LLC

1. Remove instrument cluster bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Removal .

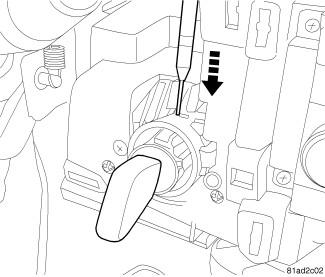

   Fig 2: Depressing Locking Pin

   Courtesy of CHRYSLER LLC
2. Insert key and rotate to the one o'clock position.
3. Use thin screw driver to depress locking pin for key cylinder.
4. Pull key assembly from switch housing.
