P0325-Knock Sensor 1 Circuit: Notes

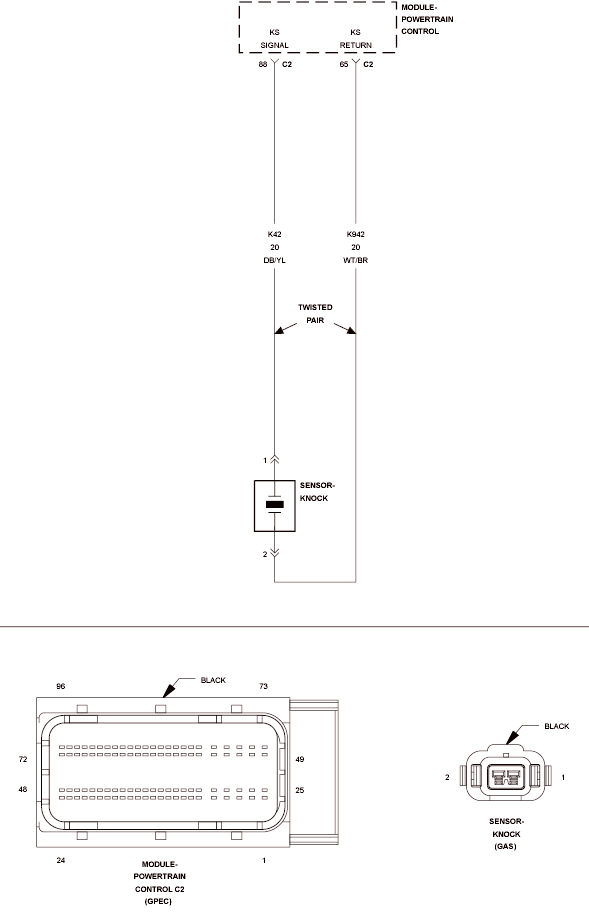

Fig 1: Knock Sensor Circuit

GC0123828

Courtesy of CHRYSLER LLC
