P0336-Crankshaft Position Sensor Performance: Notes

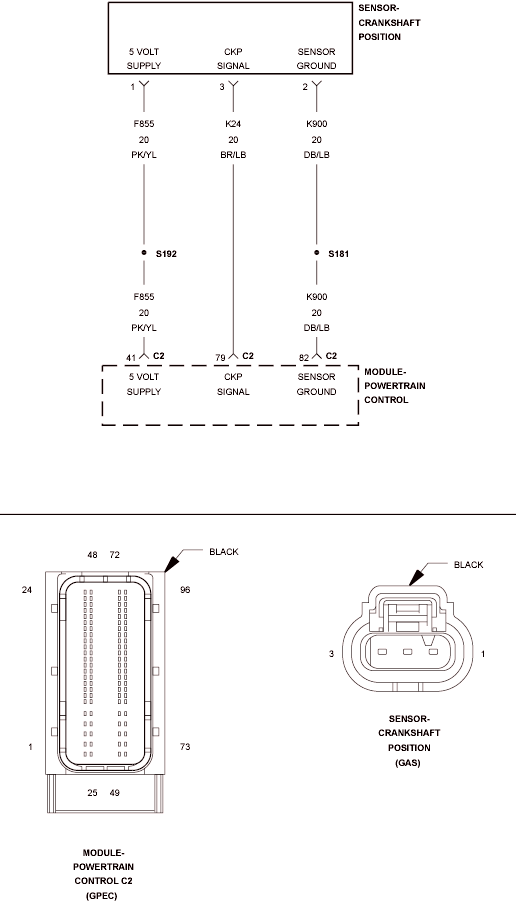

Fig 1: Crankshaft Position Sensor Circuit
GC0123827Courtesy of CHRYSLER LLC
