P0366-Camshaft Position Sensor Performance-Bank 1 Sensor 2: Notes

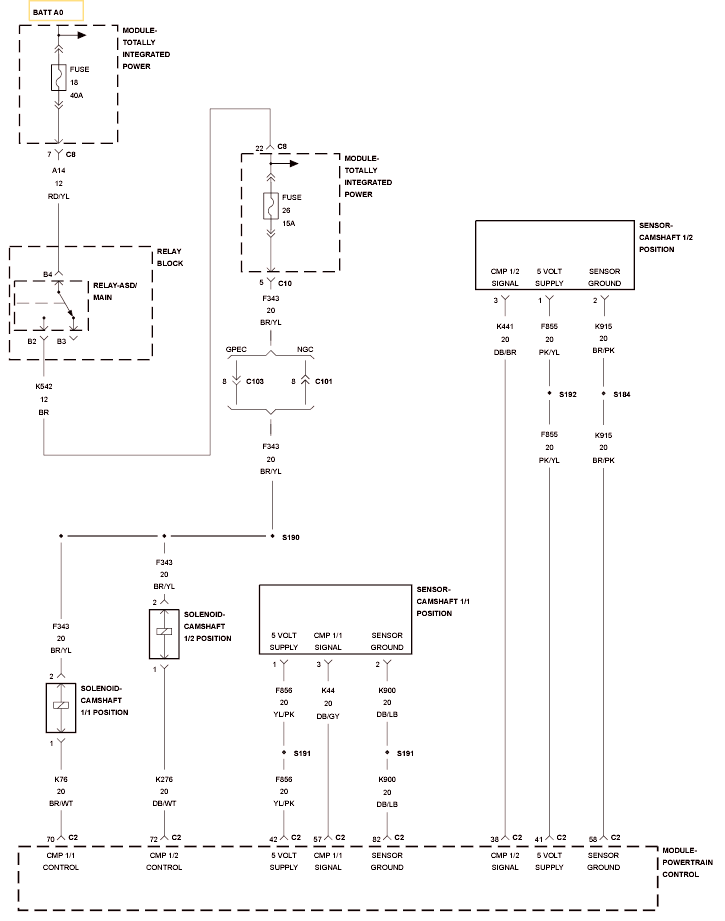

Fig 1: Camshaft Position Sensor Circuit
GC0123807Courtesy of CHRYSLER LLC
