P0571-Brake Switch 1 Performance: Notes

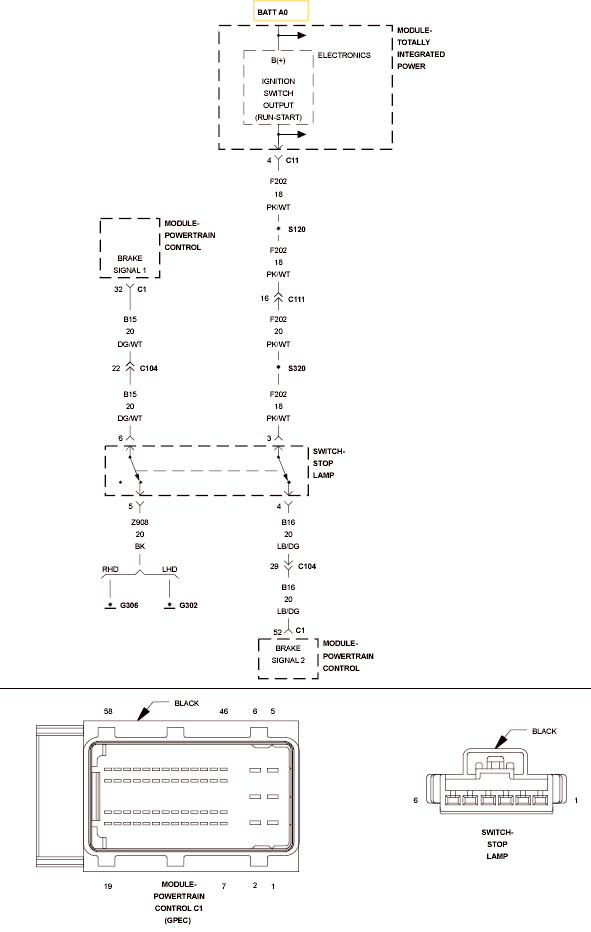

Fig 1: Brake Switch Circuit
GC0123857Courtesy of CHRYSLER LLC
