P0580-Speed Control Switch 1 Circuit Low: Notes

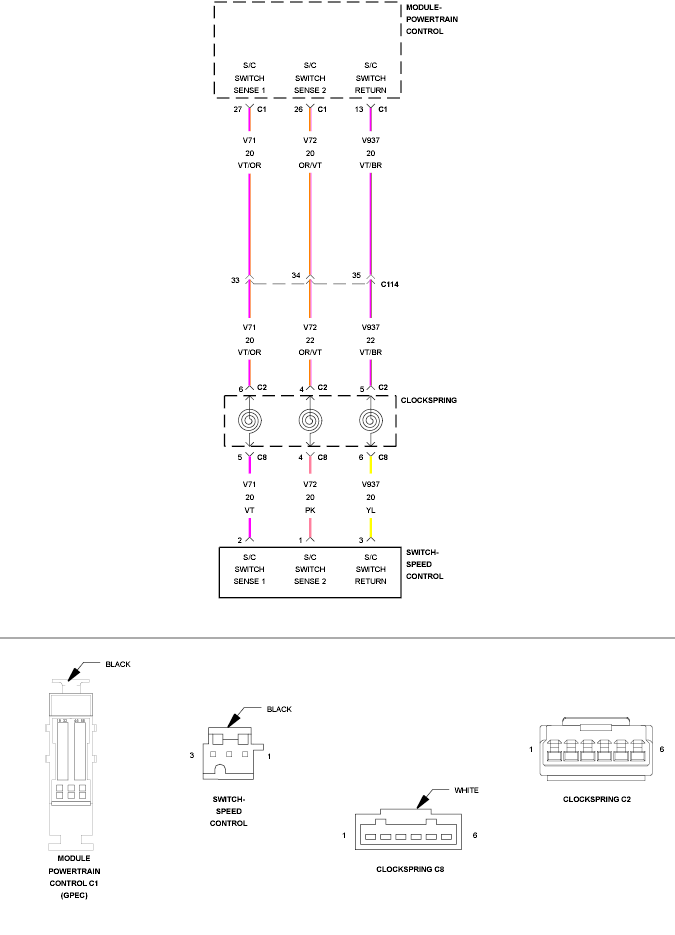

Fig 1: Speed Control Switch Circuit
GC0123858Courtesy of CHRYSLER LLC
