P2167-Accelerator Pedal Position Sensor 2 Maximum Stop Performance: Notes

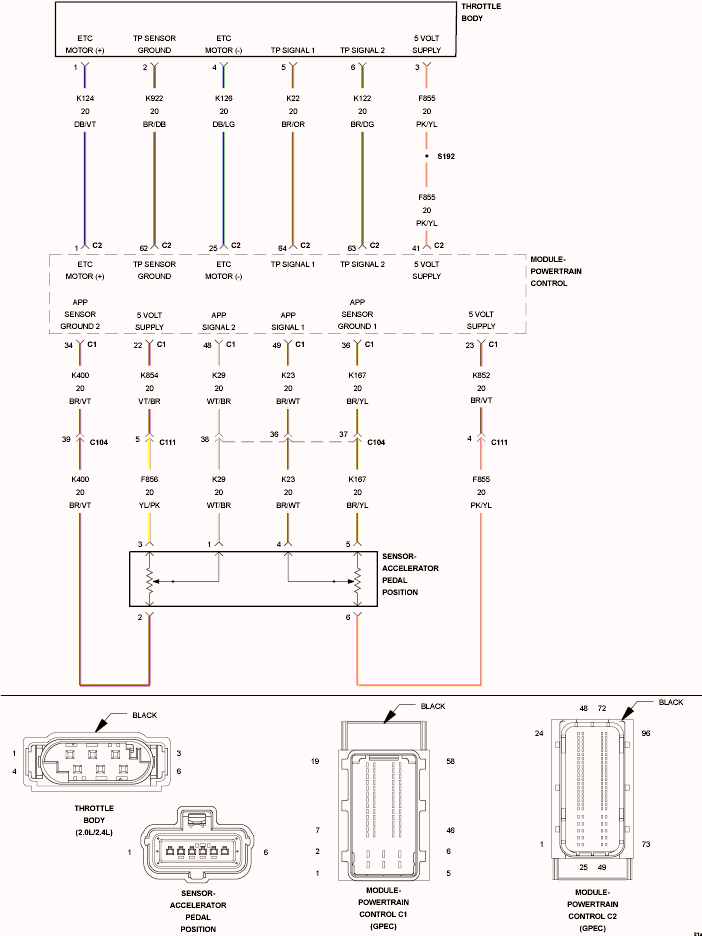

Fig 1: Accelerator Pedal Position Sensor Circuit
GC0123868Courtesy of CHRYSLER LLC
