P2181-Cooling System Performance: Notes

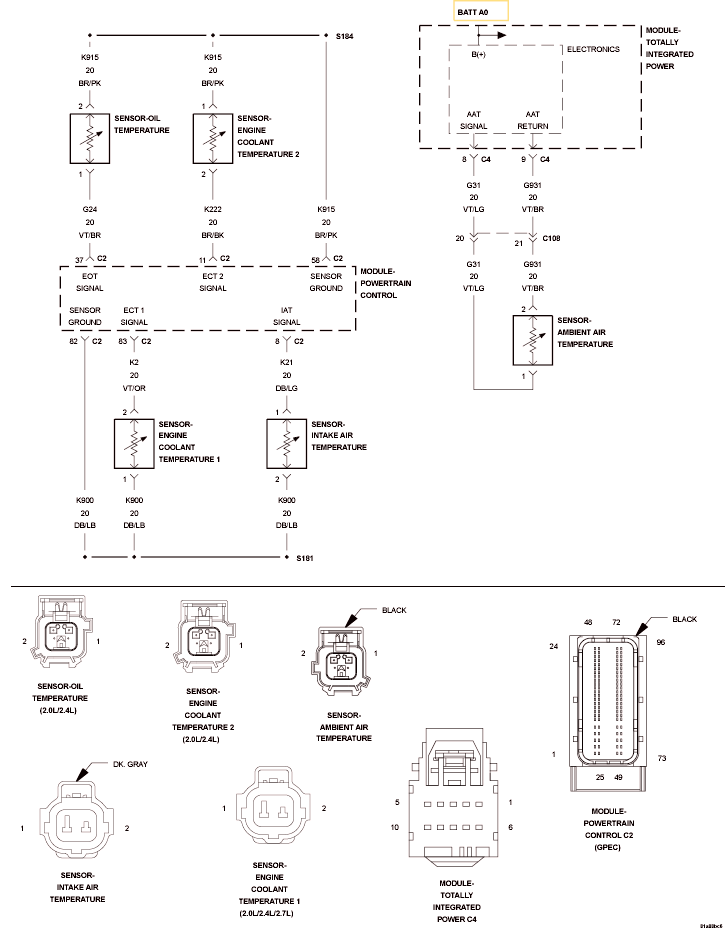

Fig 1: Engine Coolant Temperature Sensor Circuit
GC0123816Courtesy of CHRYSLER LLC
