P2270-O2 Sensor 1/2 Signal Biased Lean: Notes

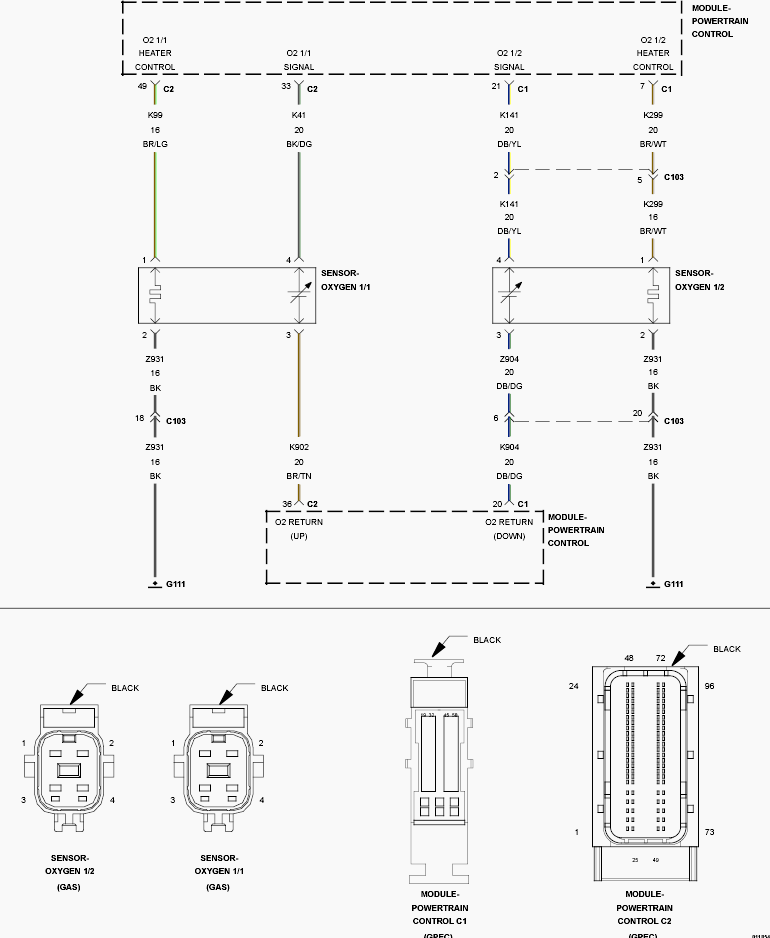

Fig 1: Oxygen Sensor Circuit
GC0123809Courtesy of CHRYSLER LLC
