P2304-Ignition Coil 2 Circuit High: Notes

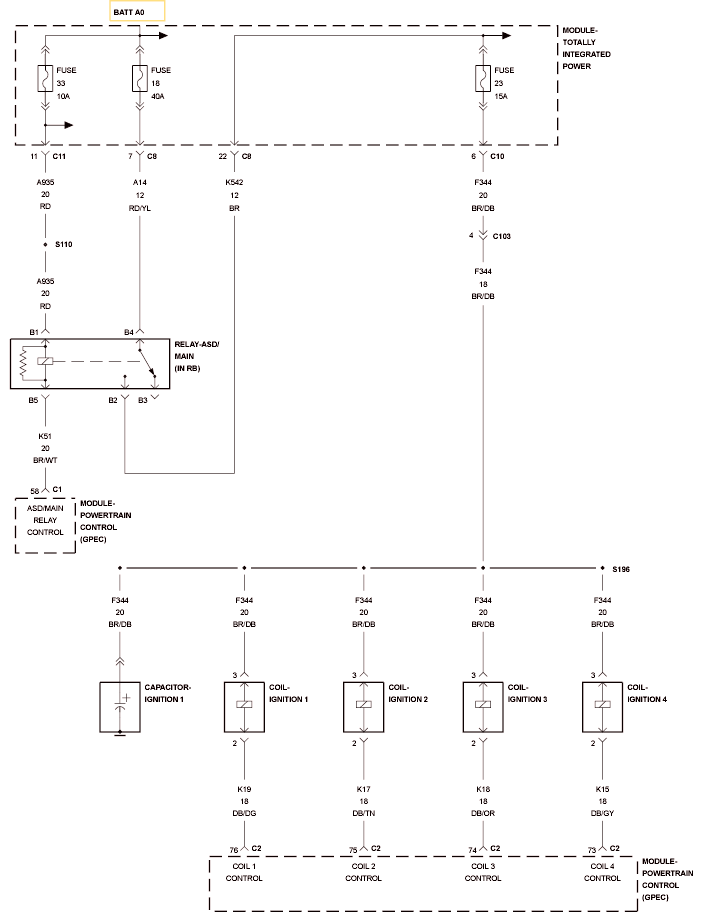

Fig 1: Ignition Coil Circuit
GC0123829Courtesy of CHRYSLER LLC
