B1B8F-Driver Seat Track Position Sensor Circuit Open: Notes

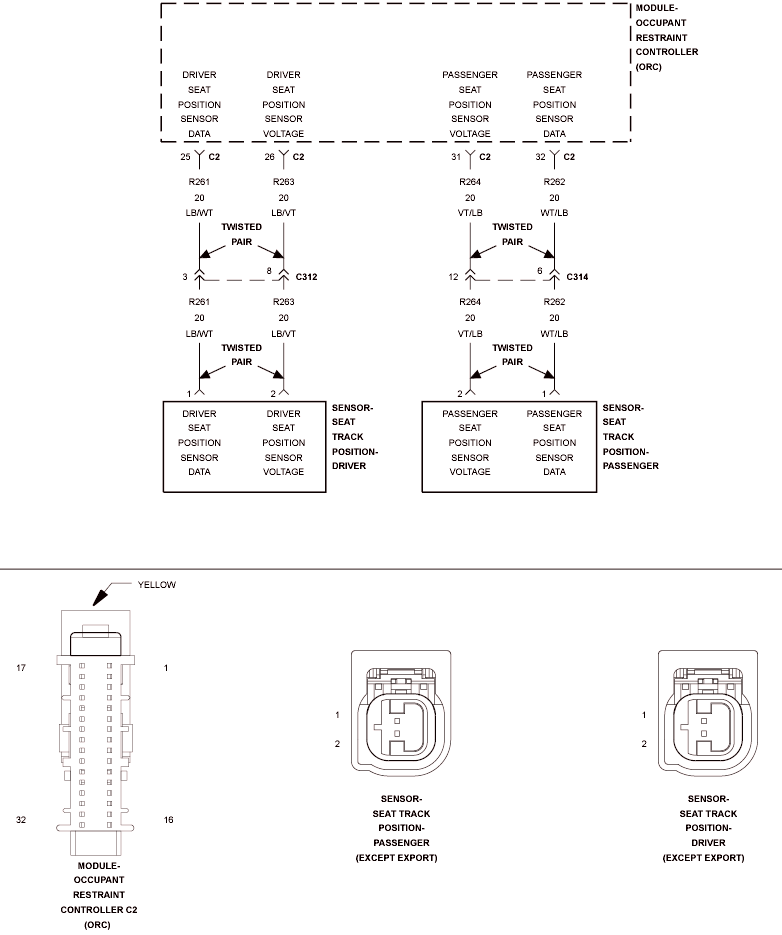

Fig 1: Driver Seat Track Position Sensor Circuit
GC0123470Courtesy of CHRYSLER LLC
