Front Suspension: Front: Description: Description

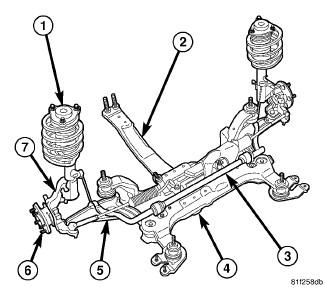

Fig 1: Front Suspension Module

Courtesy of CHRYSLER LLC

This vehicle has a gas pressurized MacPherson strut type front suspension design.

Each side of the front suspension consists of these major components:

• (1) Strut Assembly
• (2) Fore/Aft Crossmember
• (3) Stabilizer Bar
• (4) Front Suspension Crossmember
• (5) Lower Control Arm
• (6) Hub And Bearing
• (7) Knuckle

Service procedures for the front suspension crossmember and fore/aft crossmember can be found in the FRAME AND BUMPERS .
