P0629-Fuel Pump Control Circuit High: Notes

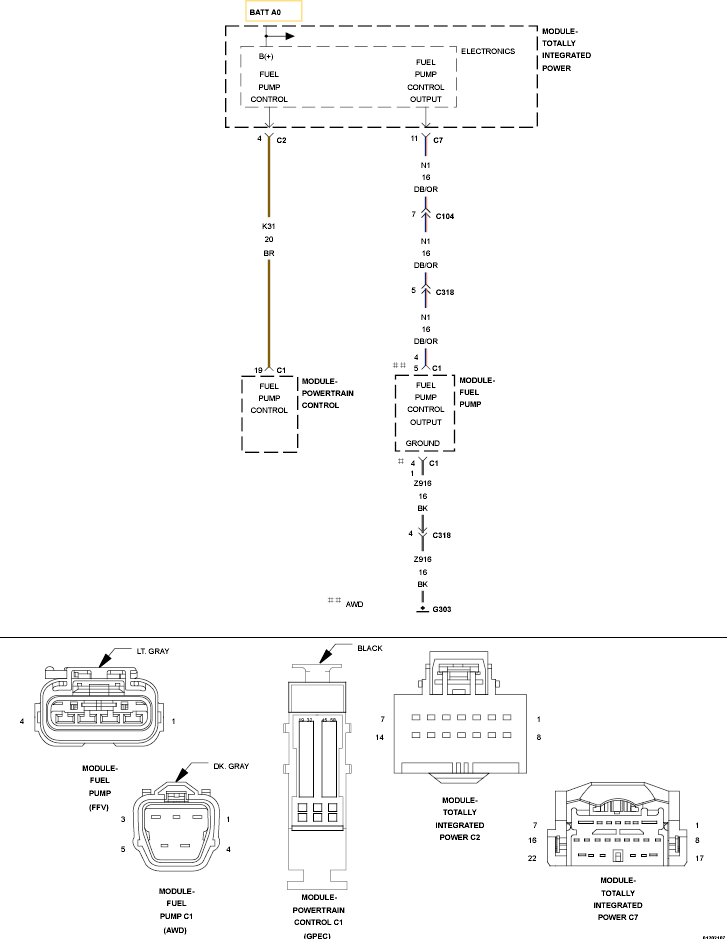

Fig 1: Fuel Pump Control Circuit
GC0123861Courtesy of CHRYSLER LLC
