Home › Chrysler › 2009 › Sebring Limited, 2D Convertible › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System - Electrical Diagnostics › DTC Troubleshooting › C1038-Rear Wheel Speed Sensor Circuit Low › Notes

C1038-Rear Wheel Speed Sensor Circuit Low: Notes

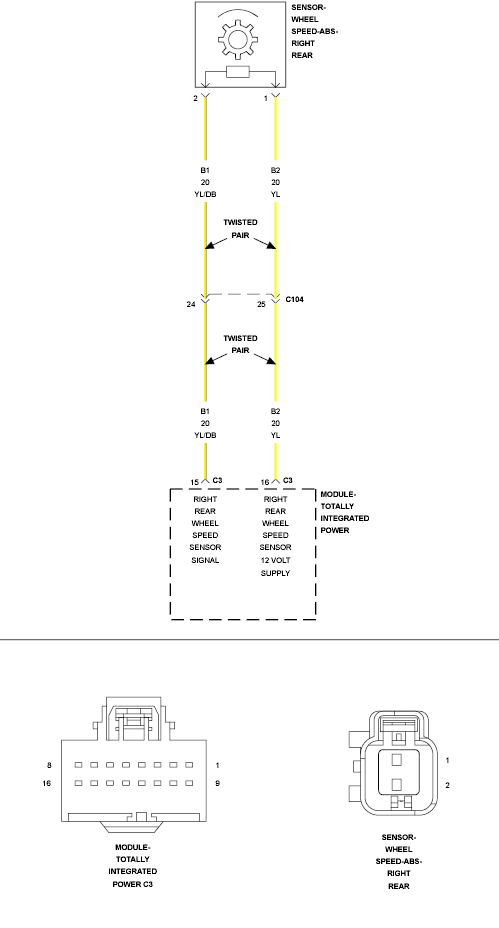

Fig 1: Rear Wheel Speed Sensor Circuit
GC0123564Courtesy of CHRYSLER LLC
