C123C-Dynamics Sensor Mounting/Installation Performance: Notes

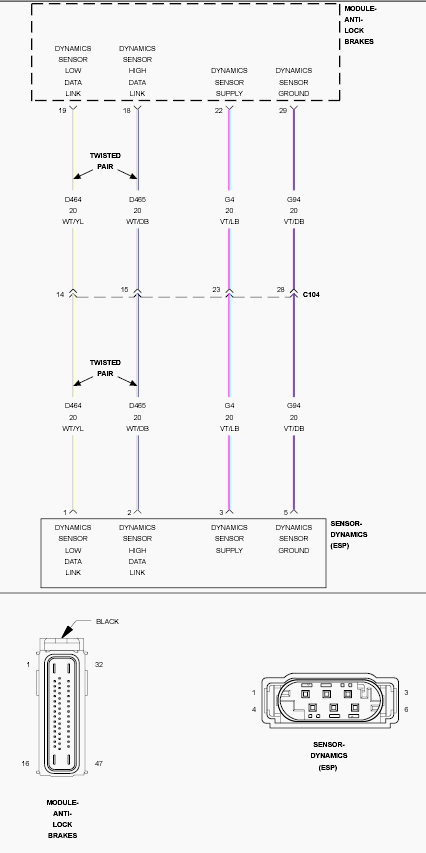

Fig 1: Dynamics Sensor Circuit
GC0123566Courtesy of CHRYSLER LLC
