P0113-Intake Air Temperature Sensor 1 Circuit High: Notes

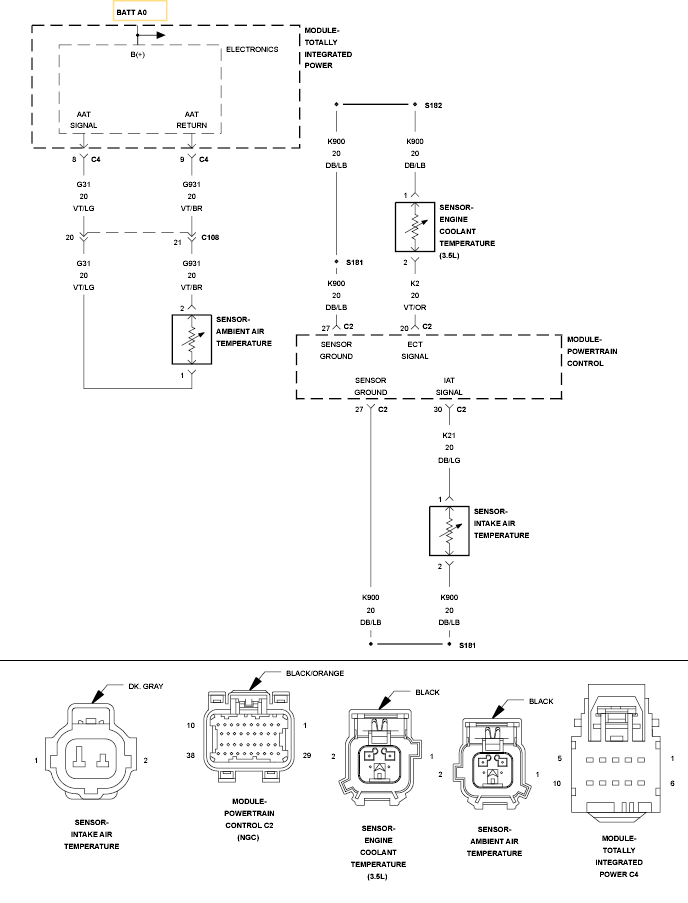

Fig 1: Ambient Air Temperature Sensor Circuit
GC0123876Courtesy of CHRYSLER LLC
