P0627-Fuel Pump Control Circuit: Notes

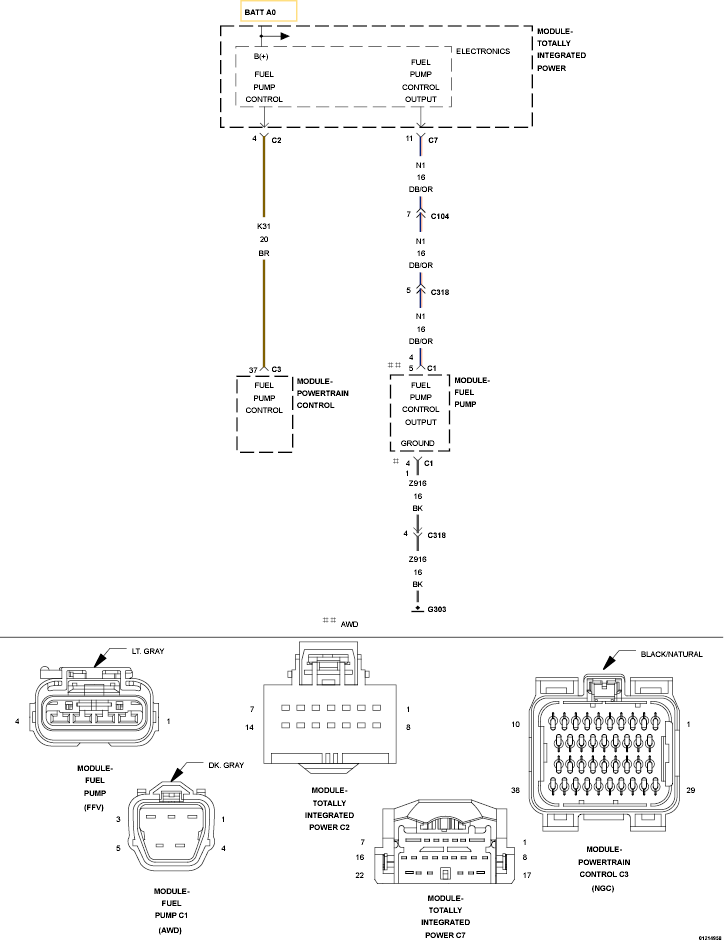

Fig 1: Fuel Pump Control Circuit
GC0123933Courtesy of CHRYSLER LLC
