Home › Chrysler › 2009 › Sebring Limited, 2D Convertible › Repair and Diagnosis › Engine Performance › System › DTCS P0645 To P2008 - NGC › P0688-ASD/Main Sense Circuit › Notes

P0688-ASD/Main Sense Circuit: Notes

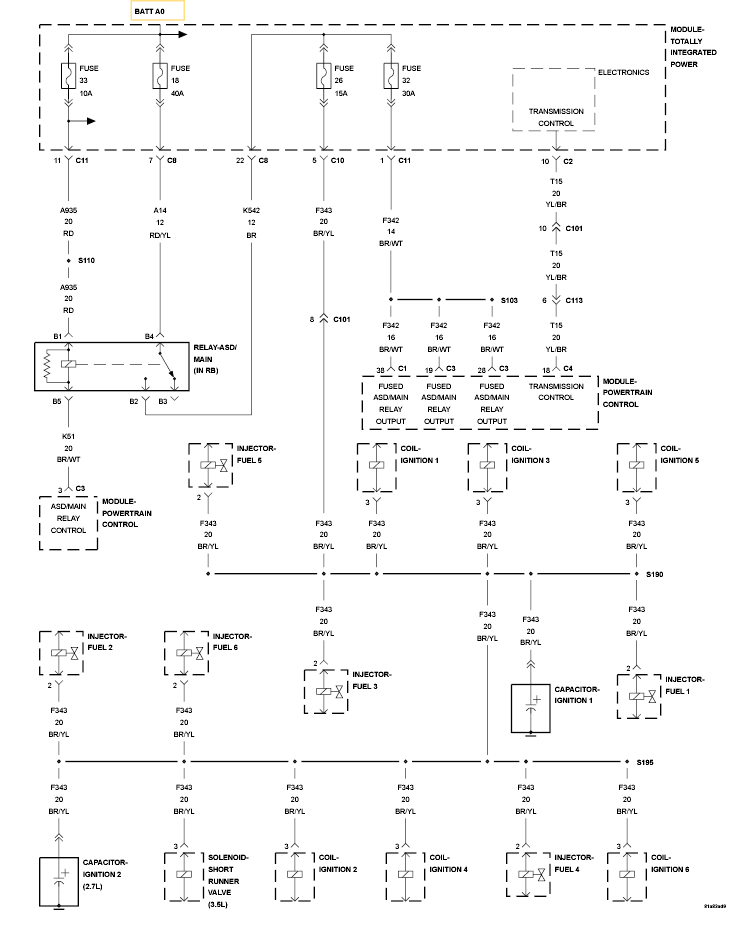

Fig 1: ASD/Main Sense Circuit
GC0123941Courtesy of CHRYSLER LLC
