Home › Chrysler › 2009 › Sebring Limited, 2D Convertible › Repair and Diagnosis › Engine Performance › System › DTCS P0645 To P2008 - NGC › P1004-Short Runner Valve Control Performance › Notes

P1004-Short Runner Valve Control Performance: Notes

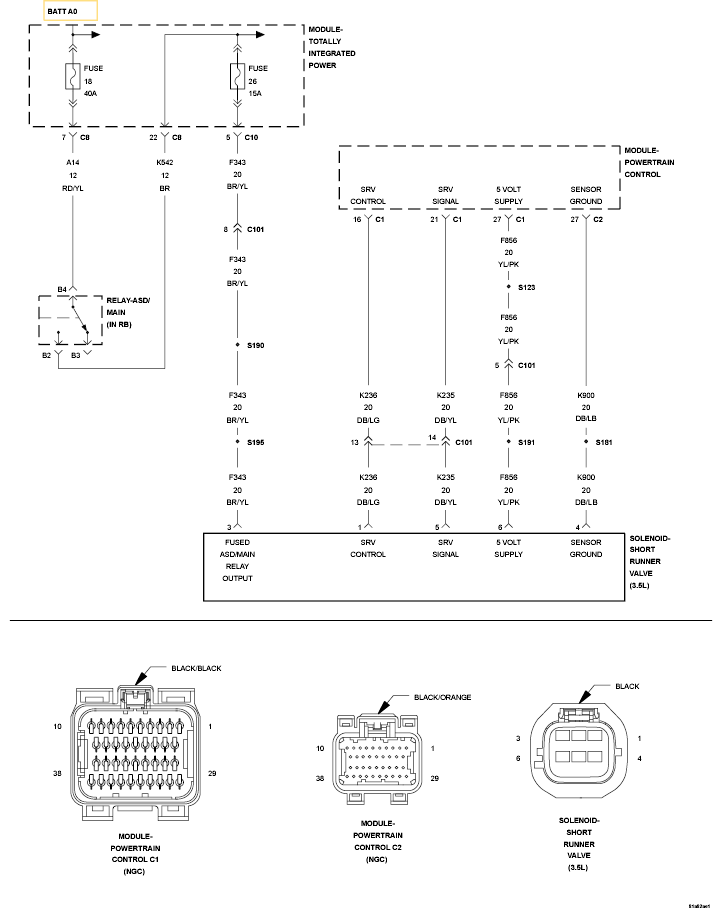

Fig 1: Short Runner Valve Control Circuit
GC0123942Courtesy of CHRYSLER LLC
