Home › Chrysler › 2009 › Sebring Limited, 2D Convertible › Repair and Diagnosis › Engine Performance › System › DTCS P0645 To P2008 - NGC › P1404-EGR Close Position Performance › Notes

P1404-EGR Close Position Performance: Notes

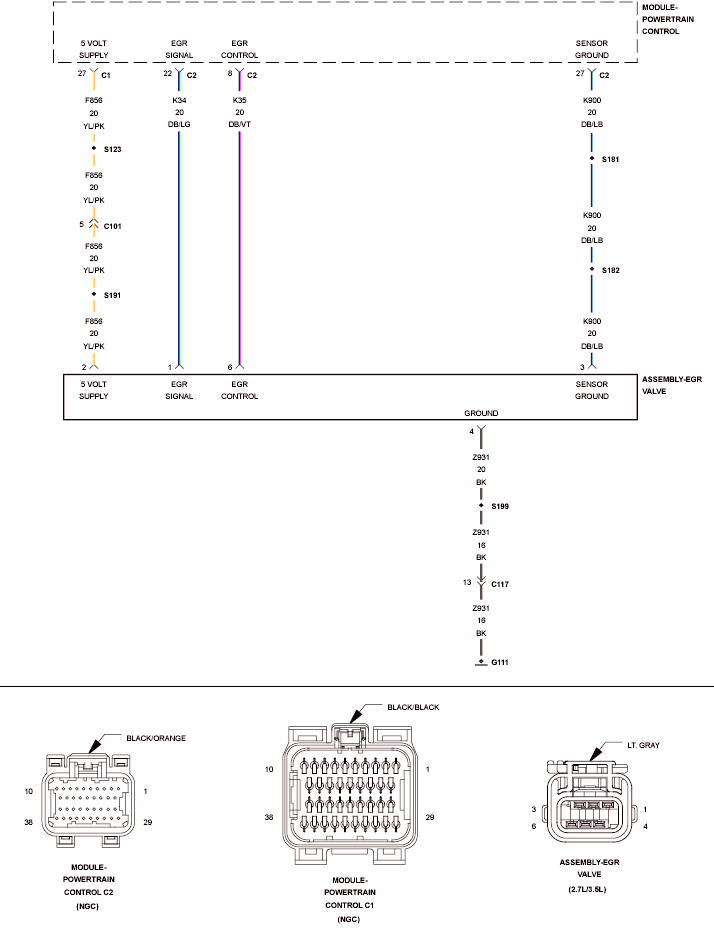

Fig 1: EGR Control Circuit
GC0123915Courtesy of CHRYSLER LLC
