Home › Chrysler › 2009 › Sebring Limited, 2D Convertible › Repair and Diagnosis › Engine Performance › System › DTCS P2016 To P2135 - NGC › P2115-Accelerator Pedal Position Sensor 1 Minimum Stop Performance › Notes

P2115-Accelerator Pedal Position Sensor 1 Minimum Stop Performance: Notes

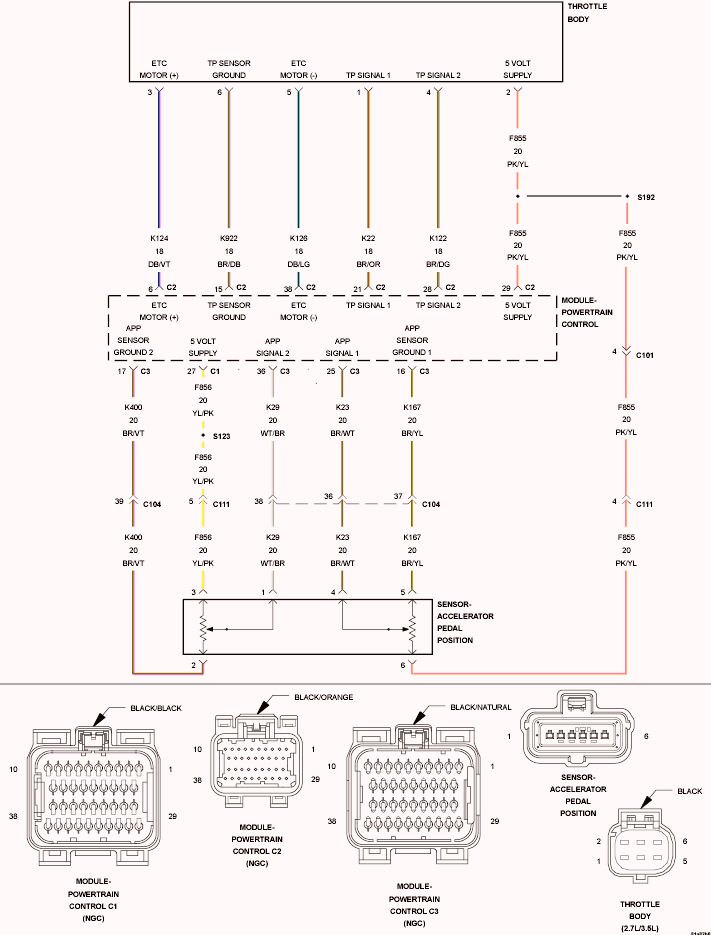

Fig 1: Accelerator Pedal Position Sensor 1 Circuit
GC0123949Courtesy of CHRYSLER LLC
