Home › Chrysler › 2009 › Sebring Limited, 2D Convertible › Repair and Diagnosis › Engine Performance › System › DTCS P2016 To P2135 - NGC › P2118-Electronic Throttle Control Motor Current Performance › Notes

P2118-Electronic Throttle Control Motor Current Performance: Notes

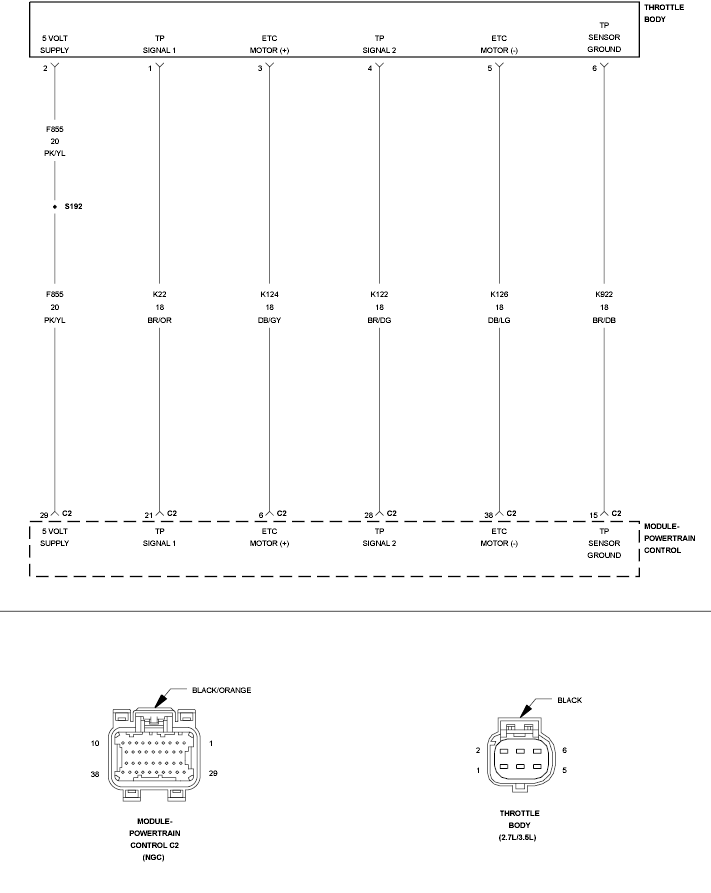

Fig 1: Throttle Position Sensor Circuit
GC0123888Courtesy of CHRYSLER LLC
