Home › Chrysler › 2009 › Sebring Limited, 2D Convertible › Repair and Diagnosis › Engine Performance › System › DTCS P2138 To U0121 - NGC › P2533-Ignition Switch Run/Start Position Circuit › Notes

P2533-Ignition Switch Run/Start Position Circuit: Notes

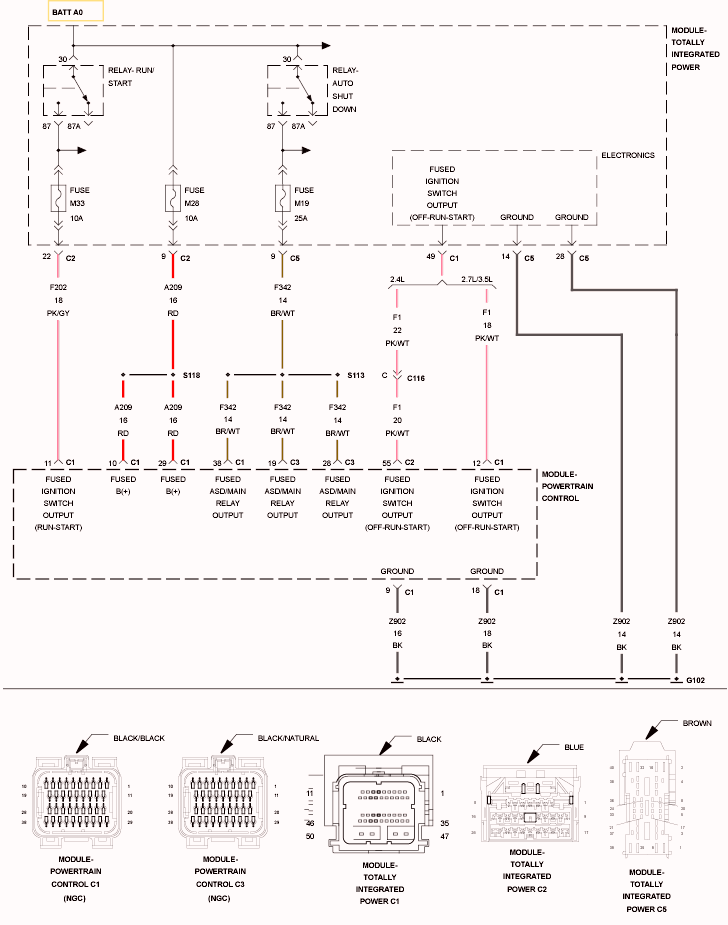

Fig 1: Ignition Switch Run/Start Position Circuit
GC0123981Courtesy of CHRYSLER LLC
